Fuel Line

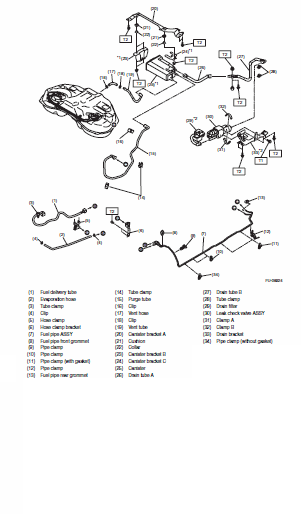

Fig 1: Exploded View Of Fuel Line

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 5.4 (0.6, 4.0)

T2: 7.5 (0.8, 5.5)

*1 When removing the canister bracket from the canister, use the new canister and canister bracket to install.

*2 When removing the drain bracket from the drain filter, use the new drain filter and drain bracket to install.
