Knock Sensor: Installation

Install the knock sensor to the cylinder block.
NOTE: The knock sensor should be installed so that the center of the connector is positioned at a 76.5 - 91.5° angle relative to the front of engine.

Tightening torque: 24 N.m (2.4 kgf-m, 17.7 ft-lb)

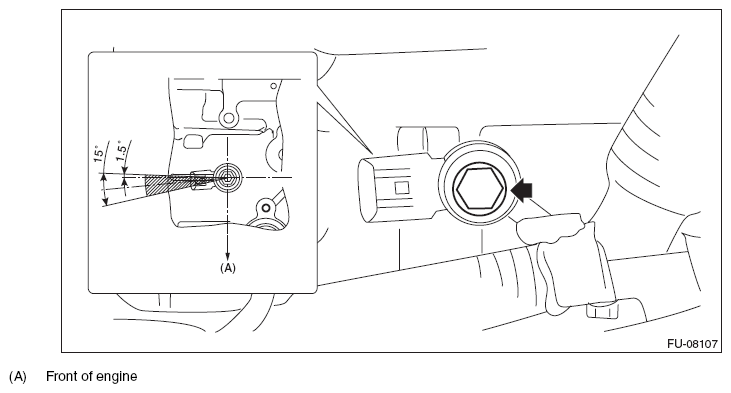

Fig 1: Locating Knock Sensor Installation Angle
Courtesy of SUBARU OF AMERICA, INC.
Connect the connector to the knock sensor.

Fig 2: Locating Knock Sensor Connector
Courtesy of SUBARU OF AMERICA, INC.
Install the throttle body. < Ref. to INSTALLATION , Throttle Body.>
Install the collector cover.
Connect the battery ground terminal. < Ref. to BATTERY , NOTE, Note.>
