Subaru
>>
2015
>>
BRZ Series.Blue, Automatic Trans
>>
Repair and Diagnosis
>>
Engine Mechanical
>>
Engine Intake System / Exhaust System
>>
Exhaust Pipe Assembly (Fa20)
>>
Exploded View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Exploded View

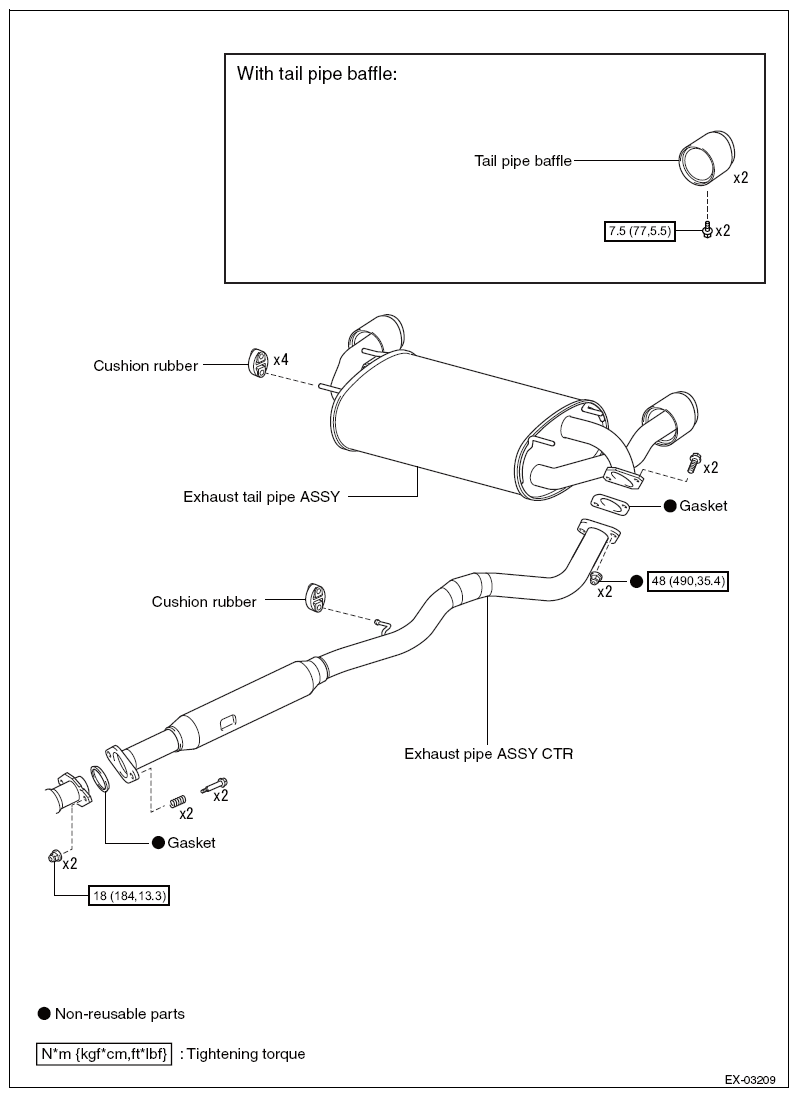

Fig 1: Exploded View Of Exhaust Pipe Assembly With Torque Specifications (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Fig 2: Exploded View Of Exhaust Pipe Assembly With Torque Specifications (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
