Parts Location

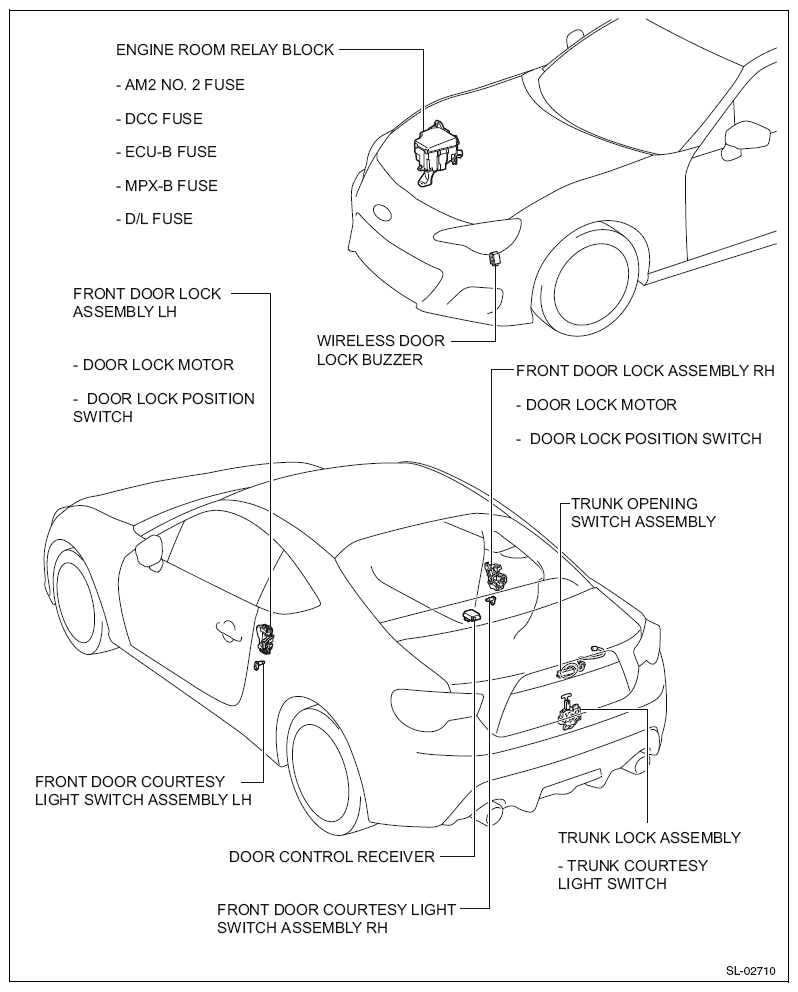

Fig 1: Anti-Theft System/Smart Entry Start System Parts Location (1 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

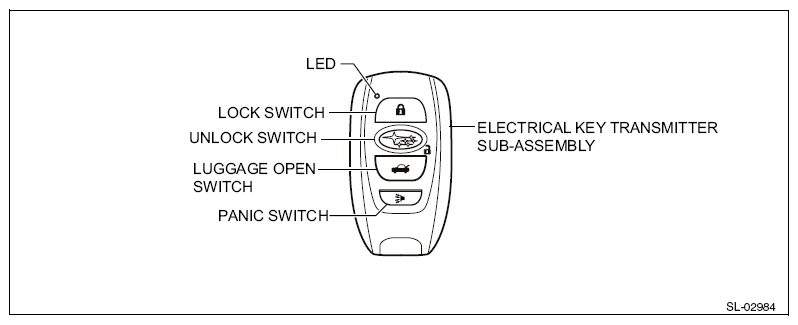

Fig 2: Anti-Theft System/Smart Entry Start System Parts Location (2 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

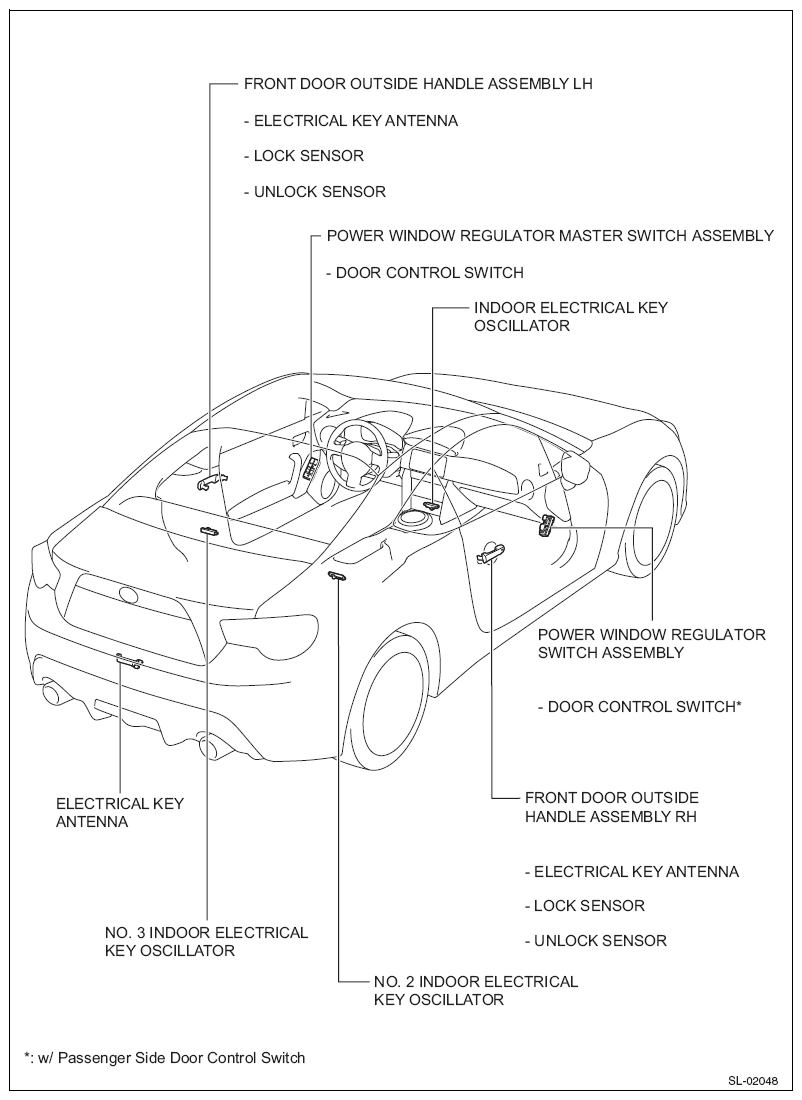

Fig 3: Anti-Theft System/Smart Entry Start System Parts Location (3 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

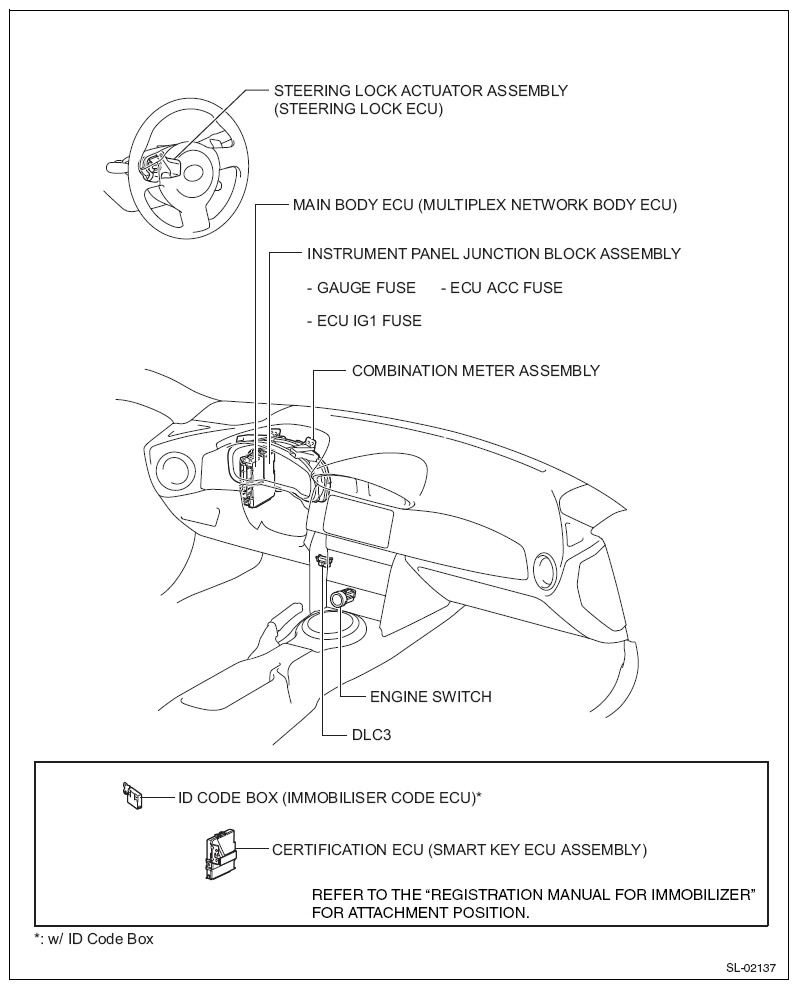

Fig 4: Anti-Theft System/Smart Entry Start System Parts Location (4 Of 4)

Courtesy of SUBARU OF AMERICA, INC.
