Front Regulator and Motor Assembly: Removal

  1. Remove the glass assembly - front door. < Ref. to REMOVAL , Front Door Glass. >
  2. Remove the regulator and motor assembly - front.
    1. Disconnect the motor - front connector.
    2. Remove the bolts, and then remove the regulator and motor assembly - front.

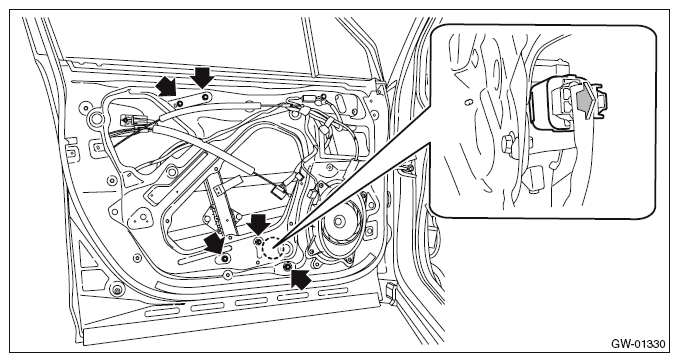

      Fig 1: Removing Front Door Glass Assembly
      G09484448Courtesy of SUBARU OF AMERICA, INC.
