Steering Column: Disassembly

  1. Remove the cover assembly - column.
    1. Release the screws and claws.
    2. Remove the cap - key cylinder (a). (Model with keyless access)
    3. Remove the cover assembly - column UPR and the cover assembly - column LWR.

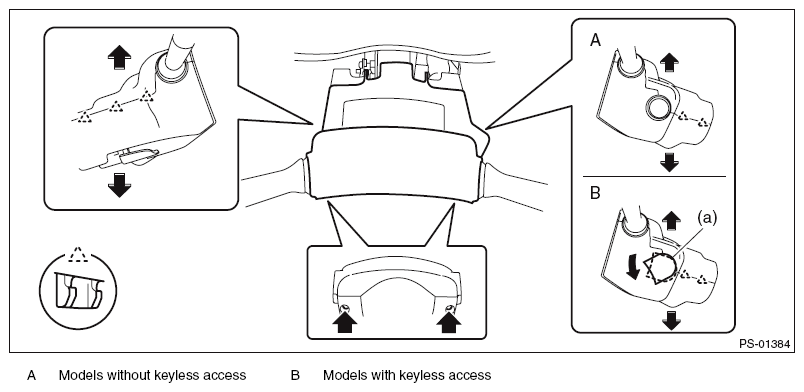

      Fig 1: Removing Column Cover Assembly
      G09483663Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the switch assembly - combination.
    1. Disconnect the connector, and loosen the clamp to release the claws.
    2. Pull out the switch assembly - combination from the column assembly - steering.
      Fig 2: Removing Combination Switch Assembly
      G08316060Courtesy of SUBARU OF AMERICA, INC.
