Engine Wiring Harness: Installation

Set the engine wiring harness to the engine, and connect the connector.
- Structural diagram 1

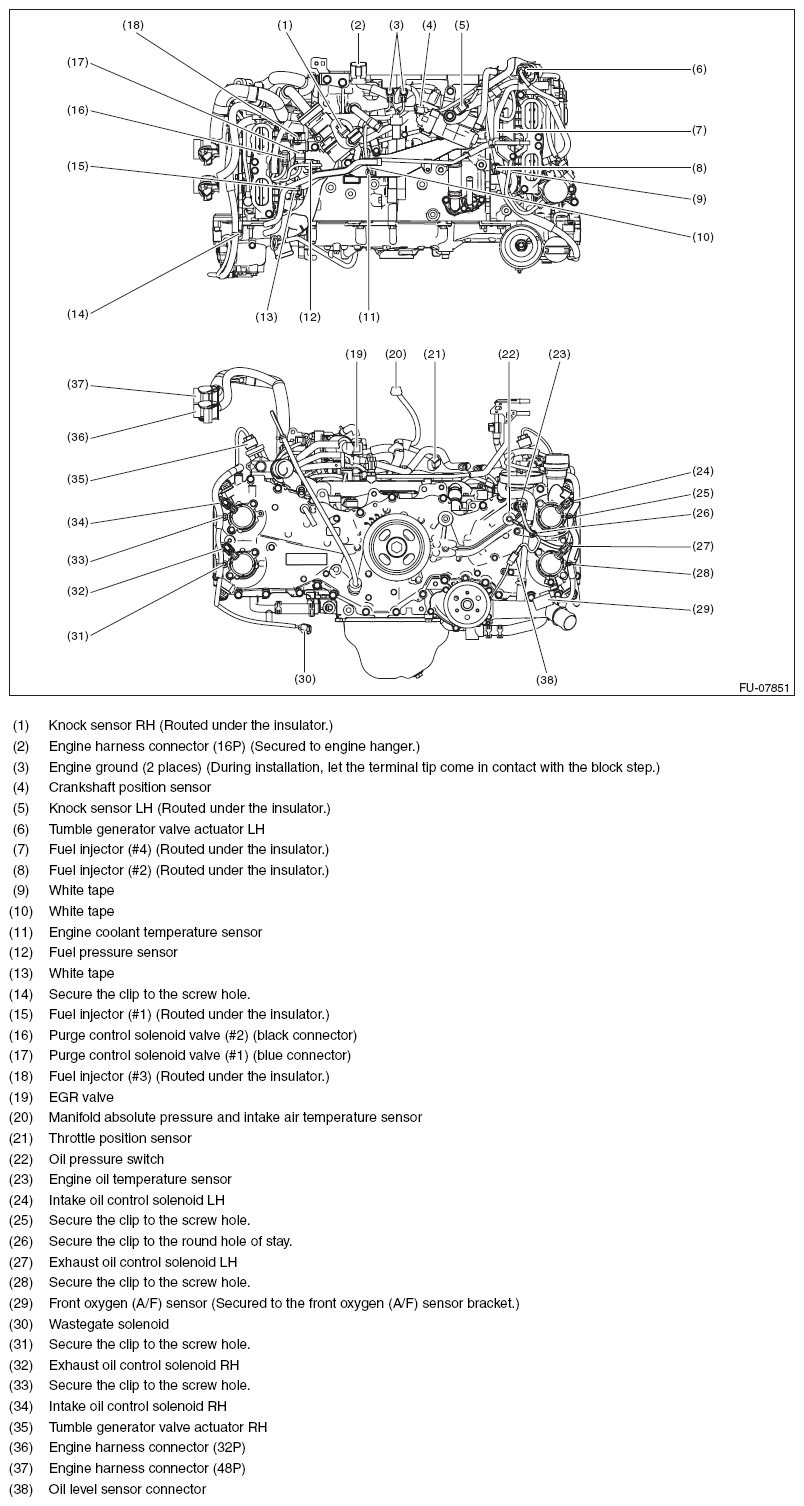

  Fig 1: Engine Wiring Harness Structural Diagram (1 Of 2)
  Courtesy of SUBARU OF AMERICA, INC.
- Structural diagram 2

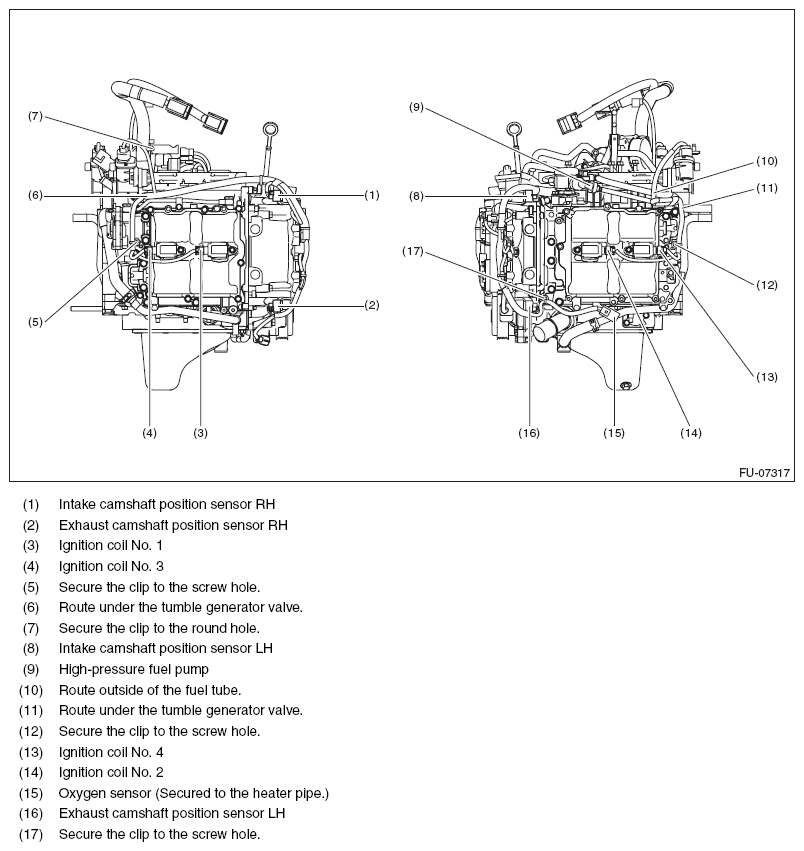

  Fig 2: Engine Wiring Harness Structural Diagram (2 Of 2)
  Courtesy of SUBARU OF AMERICA, INC.
Install the engine wiring harness.
Tightening torque:

19 N.m (1.9 kgf-m, 14.0 ft-lb)
Install the intake manifold. < Ref. to INSTALLATION , Intake Manifold. >
Connect the battery ground terminal.

Fig 3: Locating Engine Wiring Harness Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
