Intake Side

  1. Disconnect the ground cable from battery.
  2. Remove the air intake duct (rear). (RH side only) < Ref. to REMOVAL , Air Intake Duct. >
  3. Disconnect the connector (A) from the oil control solenoid, and remove the oil control solenoid from the chain cover.
    • RH side

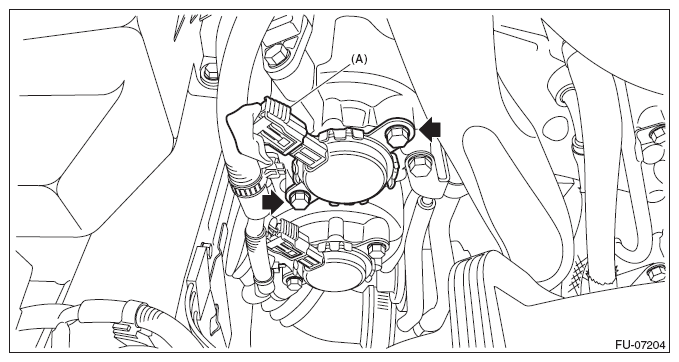

      Fig 1: Locating Oil Control Solenoid Connector And Mounting Bolts (RH)
      G09479744Courtesy of SUBARU OF AMERICA, INC.
    • LH side
      Fig 2: Locating Oil Control Solenoid Connector And Mounting Bolts (LH)
      G09479745Courtesy of SUBARU OF AMERICA, INC.
