Control Module I/O Signal: Wiring Diagram

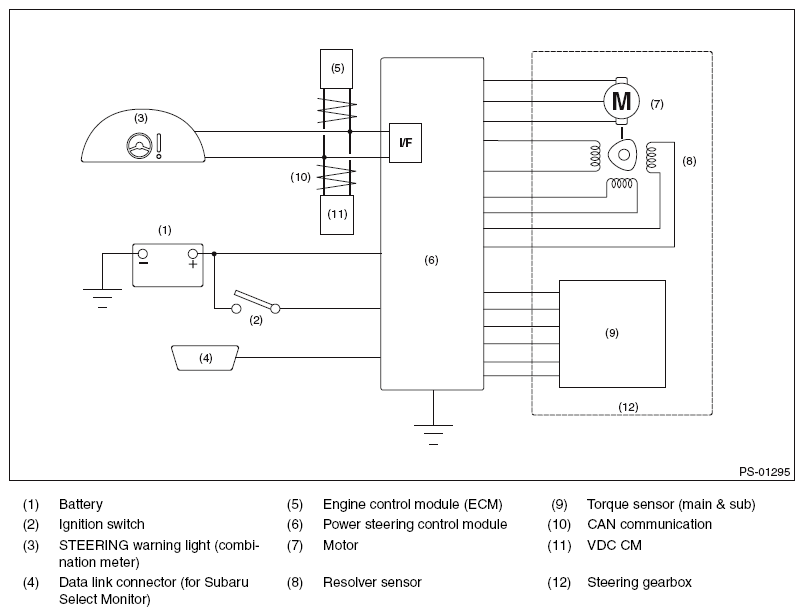

Fig 1: Power Assisted System - Wiring Diagram
G09483704Courtesy of SUBARU OF AMERICA, INC.
