Electric Power Steering Control Module

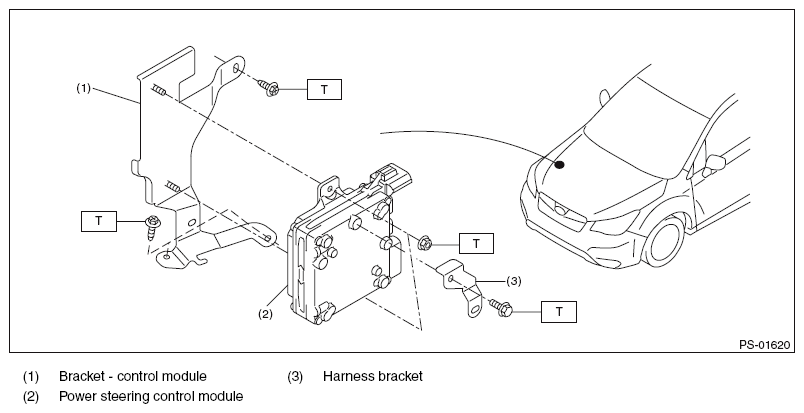

Fig 1: Exploded View Of Electric Power Steering Control Module
G09483638Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 7.5 (0.76, 5.5)
