Outback Model

  1. Disconnect the ground terminal from battery sensor. <Ref. to BATTERY , NOTE, Repair Contents.>
  2. Remove the trim panel - rear gate. <Ref. to REMOVAL , Rear Gate Trim.>
  3. Remove the garnish assembly - rear gate. <Ref. to REMOVAL , Rear Gate Garnish.>
  4. Remove the rearview camera assembly.
    CAUTION: Do not drop or apply any impact to the rearview camera because it is a precision equipment.
    1. Disconnect the connector.
    2. Release the claw and hook, and then remove the rearview camera assembly.

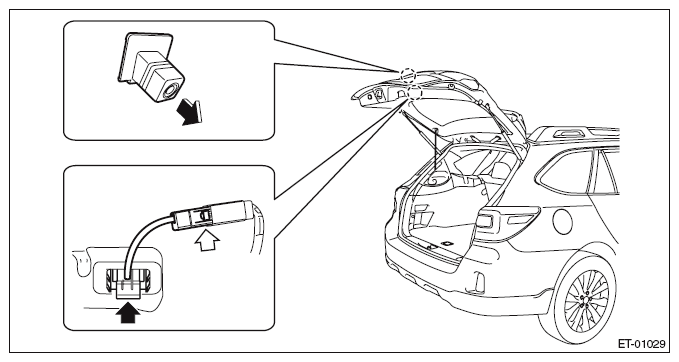

      Fig 1: Removing Rearview Camera Assembly
      G10272669Courtesy of SUBARU OF AMERICA, INC.
