Steering Angle Sensor: Removal

CAUTION:
  • If the steering wheel and steering angle sensor are removed, perform "VDC sensor midpoint setting mode" of the VDC. <Ref. to VDC SENSOR MIDPOINT SETTING MODE , ADJUSTMENT, VDC Control Module and Hydraulic Control Unit (VDCCM & H/U).>
  • Before performing service on the airbag module, always refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM" article. <Ref. to CAUTION , General Description.>
  • Always use the steering wheel puller for removal to avoid deforming the steering wheel.
  • If the steering wheel has been removed, make sure that the steering roll connector is not turned from the original position.
  1. Position the front wheels straight ahead.
  2. Disconnect the ground cable from battery and wait for at least 60 seconds before starting work. <Ref. to BATTERY , NOTE, Note.>
    NOTE: For models other than STI model, disconnect the ground terminal from battery sensor.
  3. Remove the driver's airbag module. <Ref. to REMOVAL , Driver's Airbag Module.>
  4. Remove the steering wheel. <Ref. to REMOVAL , Steering Wheel.>
  5. Remove the cover assembly - column.
    1. Remove the clip, and remove the cover - column from the cover assembly - column UPR.
      Fig 1: Locating Cover Assembly Clip - Column UPR
      G10269892Courtesy of SUBARU OF AMERICA, INC.
    2. Remove the cap - key cylinder (a). (Model with keyless access)
    3. Release the screw and claw, and remove the cover assembly - column UPR and the cover assembly - column LWR.

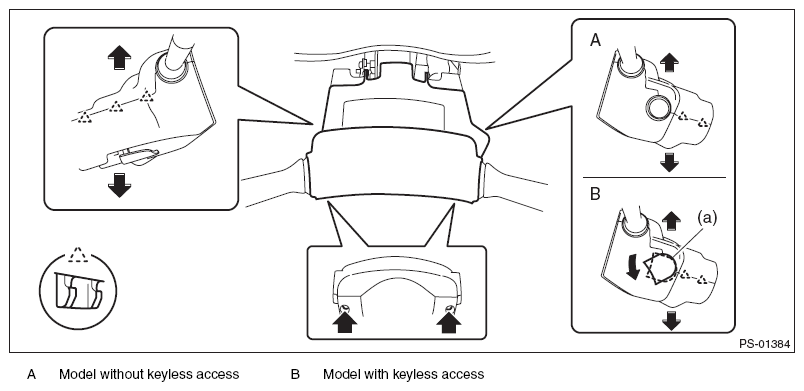

    Fig 2: Locating Cover Assembly Screw And Claw
    G10269893Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the steering roll connector.
    CAUTION: Make sure that the steering roll connector is not turned from the original position.
    1. Disconnect the connector under the steering roll connector.
    2. Release the claws and remove the steering roll connector.
      Fig 3: Identifying Steering Roll Connector
      G08316423Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the steering angle sensor.
    1. Release the claws and remove the steering angle sensor (b) from the steering roll connector (a).
      Fig 4: Identifying Steering Angle Sensor And Steering Roll Connector
      G08314738Courtesy of SUBARU OF AMERICA, INC.
