Rear Disc Brake Assembly: Assembly

WARNING: This page is about a different car, the 2015 Subaru Outback and 2015 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If the brake hose is disconnected, air enters inside. Therefore, this operation should be performed on the vehicle without the brake hose disconnected.

Check each part. <Ref. to INSPECTION , Rear Disc Brake Assembly.>
Install the bushing.
Using the ST, install the piston boot.
Preparation tool:

ST: PISTON BOOT INSTALLER (99099AL000)

Grease:

Nippon Grease NIGLUBE RX-2

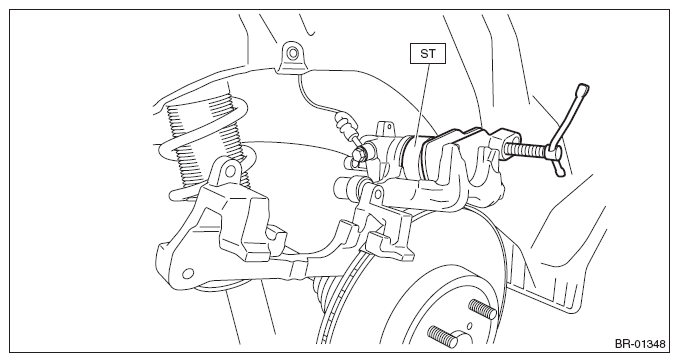

Fig 1: Installing Piston Boot Using Piston Boot Installer (ST 99099AL000)
Courtesy of SUBARU OF AMERICA, INC.
