Software Version Display

WARNING: This page is about a different car, the 2016 Subaru Outback and 2016 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn the ignition switch to ACC.
  2. Press the AUDIO/TUNE knob (b) five times with the HOME button (a) pressed to display the {Service Menu} screen.
  3. Touch the {Service Information} (c).
  4. Touch the {Version Information} (d) to display the {Version Information} screen.
  5. Touch the {AVN or DA} (e) to display the {Unit Version Information} screen.

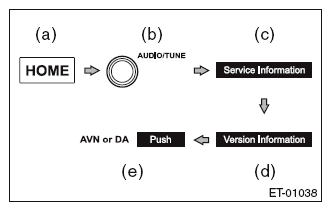

    Fig 1: Screen Display - Software Version
    G10272637Courtesy of SUBARU OF AMERICA, INC.
  6. Confirm the version.
