Example Of Writing For The Check Sheet Of Communication For Initializing

WARNING: This page is about a different car, the 2016 Subaru Outback and 2016 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

When No. 1 is open

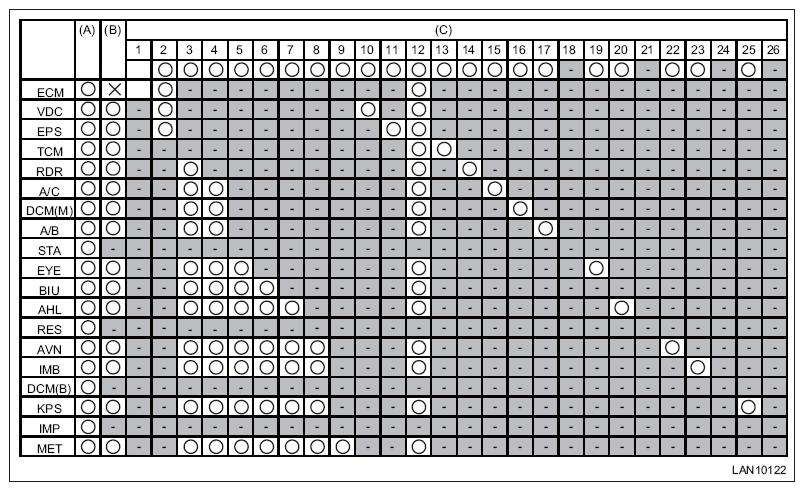

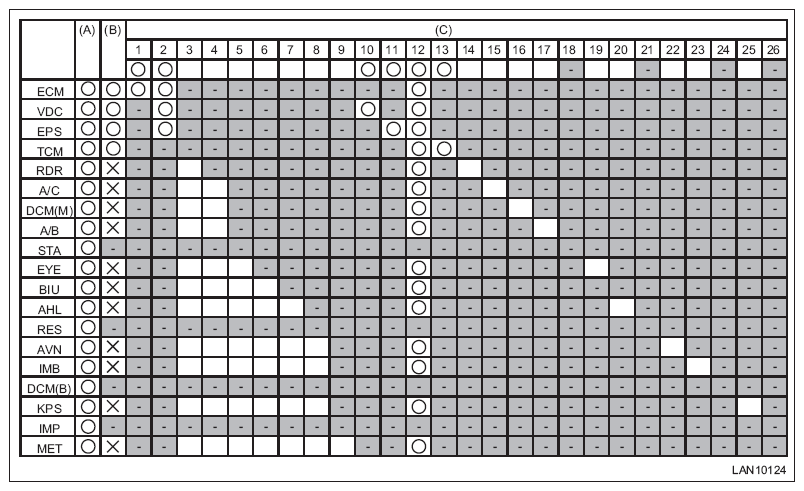

Fig 1: Communication Writing Check Sheet (No 1 Open)
Courtesy of SUBARU OF AMERICA, INC.
When No. 2 is open

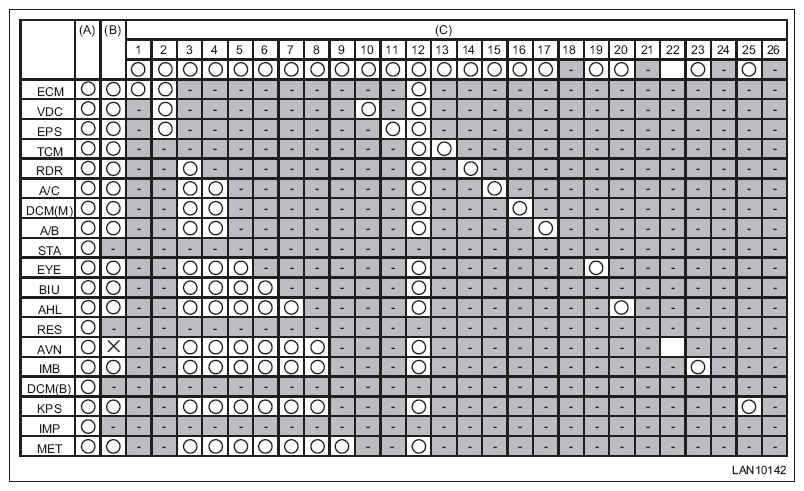

Fig 2: Communication Writing Check Sheet (No 2 Open)
Courtesy of SUBARU OF AMERICA, INC.
When No. 3 is open

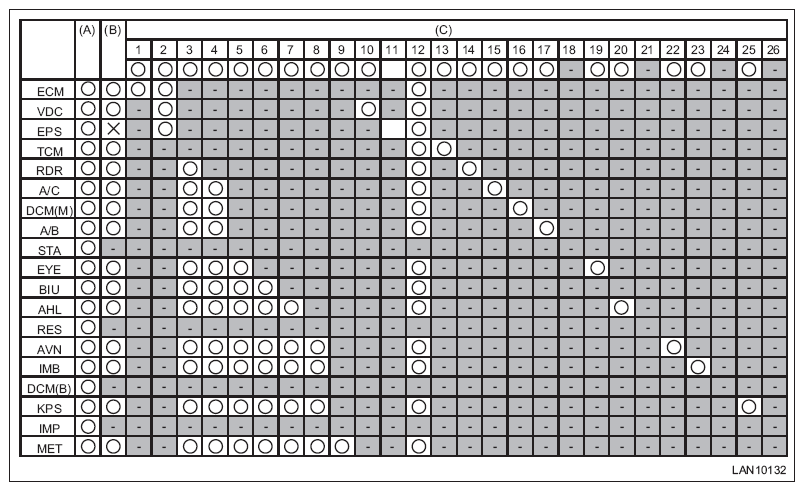

Fig 3: Communication Writing Check Sheet (No 3 Open)
Courtesy of SUBARU OF AMERICA, INC.
When No. 4 is open

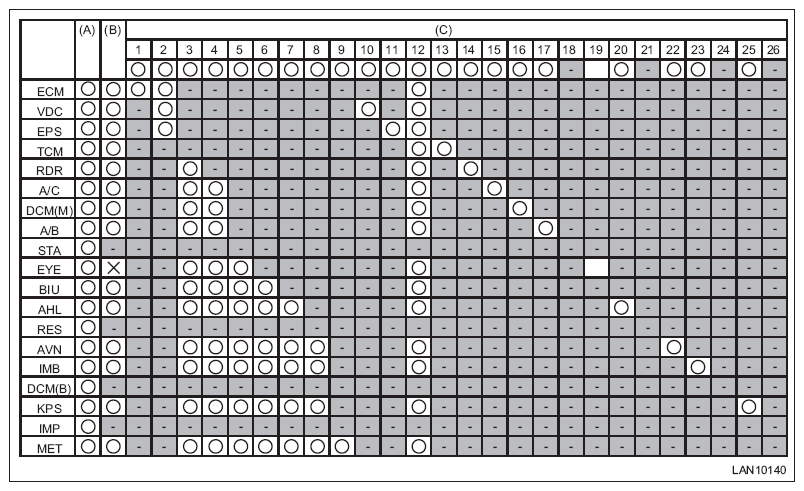

Fig 4: Communication Writing Check Sheet (No 4 Open)
Courtesy of SUBARU OF AMERICA, INC.
When No. 5 is open

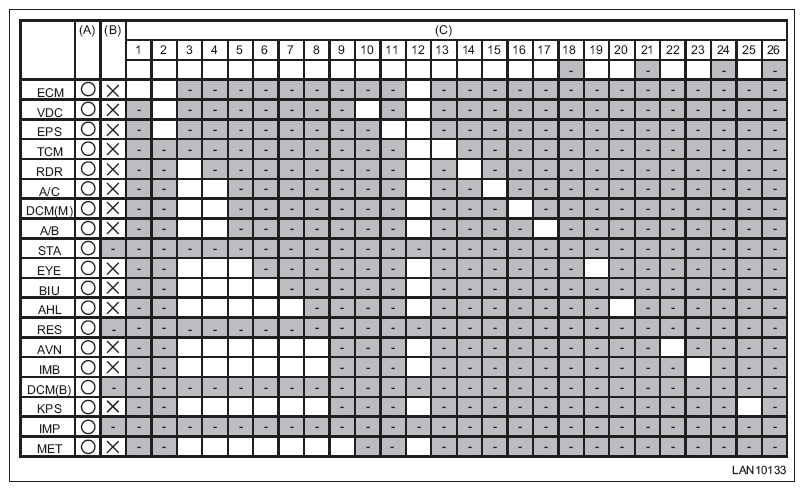

Fig 5: Communication Writing Check Sheet (No 5 Open)
Courtesy of SUBARU OF AMERICA, INC.
When No. 6 is open

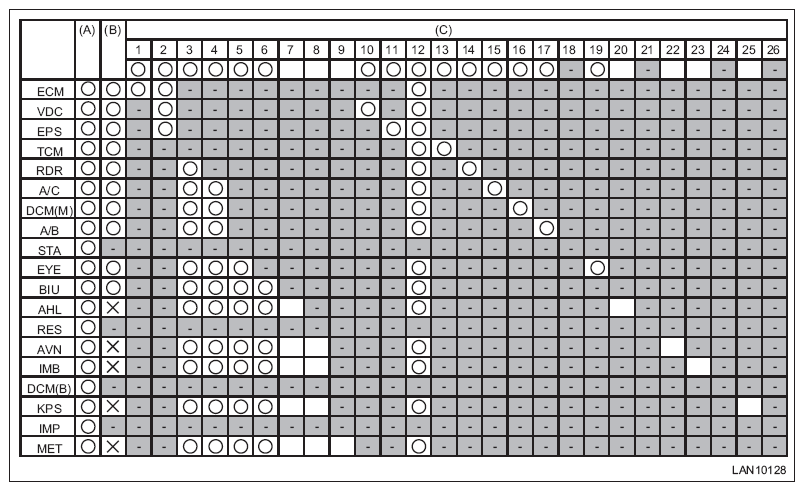

Fig 6: Communication Writing Check Sheet (No 6 Open)
Courtesy of SUBARU OF AMERICA, INC.
When No. 7 is open

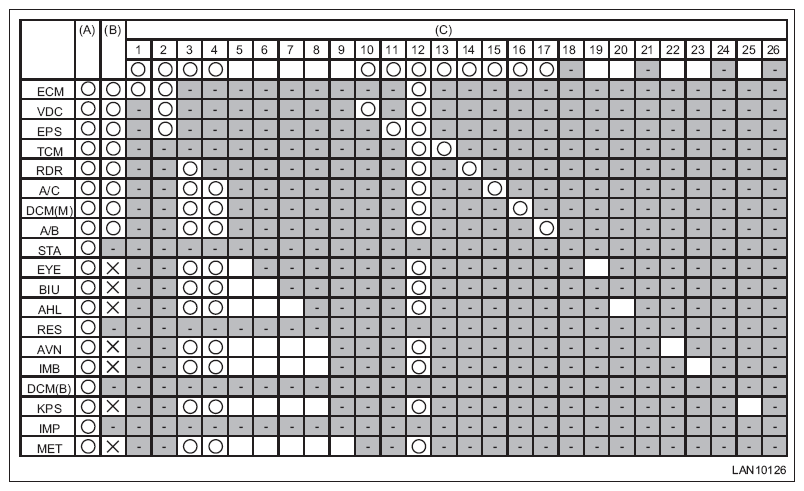

Fig 7: Communication Writing Check Sheet (No 7 Open)
Courtesy of SUBARU OF AMERICA, INC.
When No. 8 is open

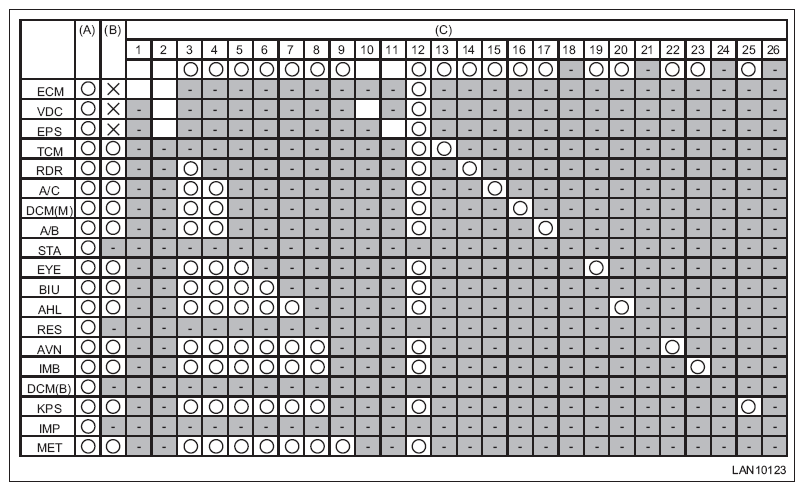

Fig 8: Communication Writing Check Sheet (No 8 Open)
Courtesy of SUBARU OF AMERICA, INC.
When No. 9 is open

Fig 9: Communication Writing Check Sheet (No 9 Open)
Courtesy of SUBARU OF AMERICA, INC.
When No. 10 is open

Fig 10: Communication Writing Check Sheet (No 10 Open)
Courtesy of SUBARU OF AMERICA, INC.
When No. 11 is open

Fig 11: Communication Writing Check Sheet (No 11 Open)
Courtesy of SUBARU OF AMERICA, INC.
When No. 12 is open
NOTE: Perform inspection by referring to 3) communication initialization check (impossible to communicate with all modules). (There may be a malfunction other than open circuit)

Fig 12: Communication Writing Check Sheet (No 12 Open)
Courtesy of SUBARU OF AMERICA, INC.
When No. 13 is open

Fig 13: Communication Writing Check Sheet (No 13 Open)
Courtesy of SUBARU OF AMERICA, INC.
When No. 14 is open

Fig 14: Communication Writing Check Sheet (No 14 Open)
Courtesy of SUBARU OF AMERICA, INC.
When No. 15 is open

Fig 15: Communication Writing Check Sheet (No 15 Open)
Courtesy of SUBARU OF AMERICA, INC.
When No. 16 is open

Fig 16: Communication Writing Check Sheet (No 16 Open)
Courtesy of SUBARU OF AMERICA, INC.
When No. 17 is open

Fig 17: Communication Writing Check Sheet (No 17 Open)
Courtesy of SUBARU OF AMERICA, INC.
When No. 18 is open
NOTE: This is the same as No. 21, No. 24 and No. 26, but it is possible to diagnose using examples of lost communication detection in each module. < Ref. to EXAMPLE OF DTC DATA NOT RECEIVED , LIST, List of Diagnostic Trouble Code (DTC). >

Fig 18: Communication Writing Check Sheet (No 18 Open)
Courtesy of SUBARU OF AMERICA, INC.
When No. 19 is open

Fig 19: Communication Writing Check Sheet (No 19 Open)
Courtesy of SUBARU OF AMERICA, INC.
When No. 20 is open

Fig 20: Communication Writing Check Sheet (No 20 Open)
Courtesy of SUBARU OF AMERICA, INC.
When No. 21 is open
NOTE: This is the same as No. 18, No. 24 and No. 26, but the remote engine starter does not operate while no DTC is detected.

Fig 21: Communication Writing Check Sheet (No 21 Open)
Courtesy of SUBARU OF AMERICA, INC.
When No. 22 is open

Fig 22: Communication Writing Check Sheet (No 22 Open)
Courtesy of SUBARU OF AMERICA, INC.
When No. 23 is open

Fig 23: Communication Writing Check Sheet (No 23 Open)
Courtesy of SUBARU OF AMERICA, INC.
When No. 24 is open
NOTE: This is the same as No. 18, No. 21 and No. 26, but it is possible to diagnose using examples of lost communication detection in each module. < Ref. to EXAMPLE OF DTC DATA NOT RECEIVED , LIST, List of Diagnostic Trouble Code (DTC). >

Fig 24: Communication Writing Check Sheet (No 24 Open)
Courtesy of SUBARU OF AMERICA, INC.
When No. 25 is open

Fig 25: Communication Writing Check Sheet (No 25 Open)
Courtesy of SUBARU OF AMERICA, INC.
When No. 26 is open
NOTE: This is the same as No. 18, No. 21 and No. 24, but the impact sensor does not operate while no DTC is detected.

Fig 26: Communication Writing Check Sheet (No 26 Open)
Courtesy of SUBARU OF AMERICA, INC.
