Model With 7 Inch Display

WARNING: This page is about a different car, the 2016 Subaru Outback and 2016 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For models with 6.2 inch display, refer to Audio System. < Ref. to OPERATION , Audio System. >

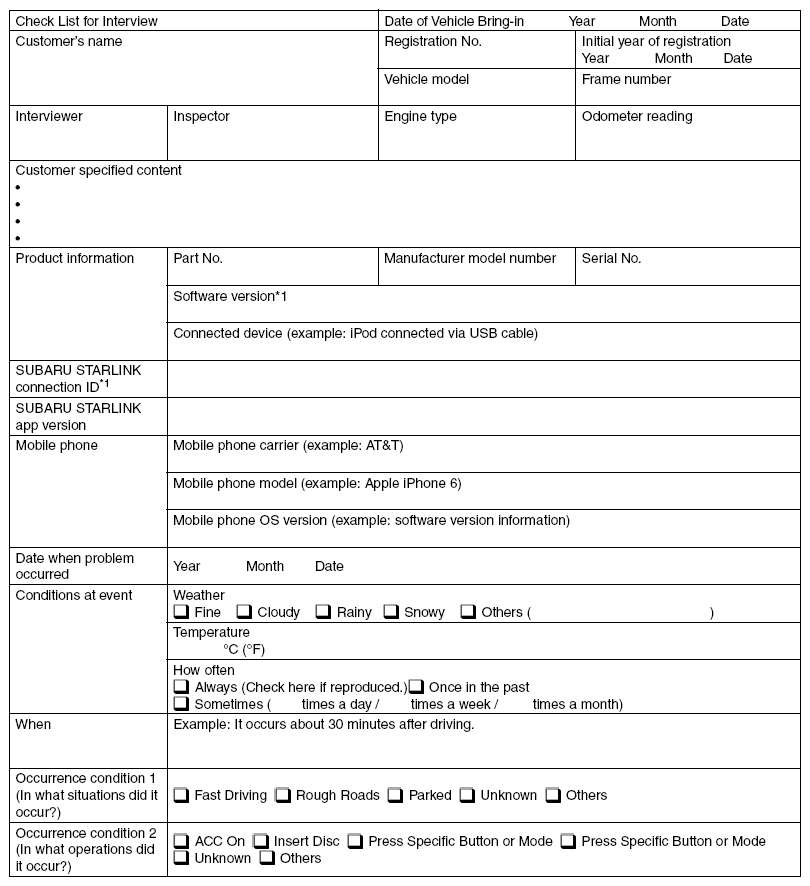

Fig 1: Customer Interview Check Sheet - Model With 7 Inch Display (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

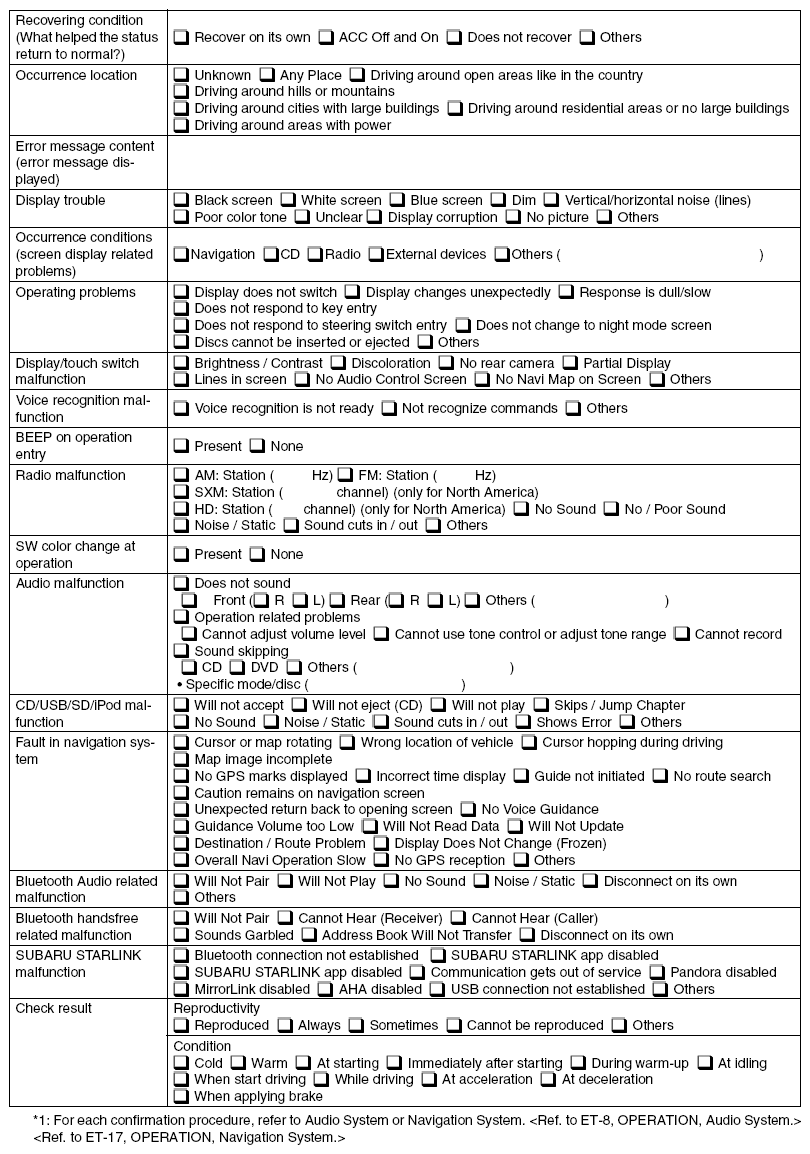

Fig 2: Customer Interview Check Sheet - Model With 7 Inch Display (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
