Power Amplifier

WARNING: This page is about a different car, the 2016 Subaru Outback and 2016 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

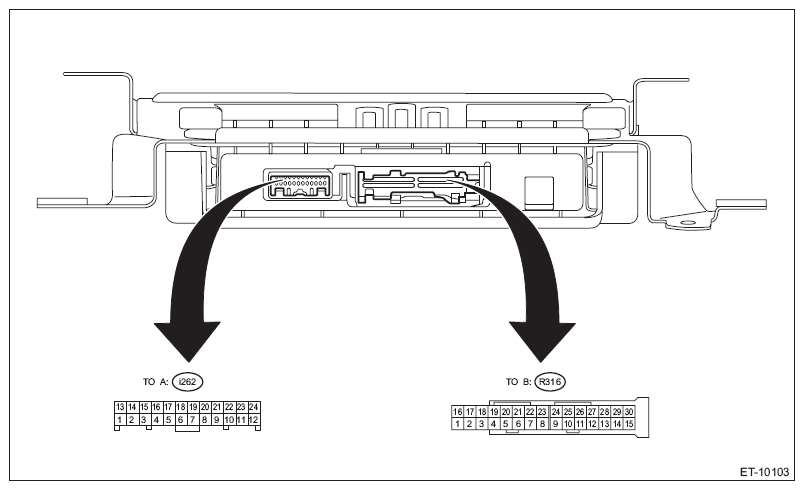

Fig 1: Power Amplifier Control Module I/O Signal Connector Terminal Identification
G10309185Courtesy of SUBARU OF AMERICA, INC.
Terminal No. Contents Details
(B316) No. 1 +B Battery power supply
(B316) No. 2 NC Not connected
(B316) No. 3 NC Not connected
(B316) No. 4 NC Not connected
(B316) No. 5 NC Not connected
(B316) No. 6 NC Not connected
(B316) No. 7 NC Not connected
(B316) No. 8 WF+ Sub woofer positive
(B316) No. 9 TWR+ Instrument panel right side speaker positive
(B316) No. 10 CTR+ Instrument panel center speaker positive
(B316) No. 11 FL+ Left side front door speaker positive
(B316) No. 12 FR+ Right side front door speaker positive
(B316) No. 13 TWL+ Instrument panel left side speaker positive
(B316) No. 14 RL+ Left side rear door speaker positive
(B316) No. 15 RR+ Right side rear door speaker positive
(B316) No. 16 +B2 Battery power supply
(B316) No. 17 NC Not connected
(B316) No. 18 GND2 Ground
(B316) No. 19 NC Not connected
(B316) No. 20 NC Not connected
(B316) No. 21 NC Not connected
(B316) No. 22 NC Not connected
(B316) No. 23 WF- Sub woofer negative
(B316) No. 24 TWR- Instrument panel right side speaker negative
(B316) No. 25 CTR- Instrument panel center speaker negative
(B316) No. 26 FL- Left side front door speaker negative
(B316) No. 25 FR- Right side front door speaker negative
(B316) No. 28 TWL- Instrument panel left side speaker negative
(B316) No. 29 RL- Left side rear door speaker negative
(B316) No. 30 RR- Right side rear door speaker negative
(i262) No. 1 MUTE MUTE
(i262) No. 2 L- Left channel negative input
(i262) No. 3 L+ Left channel positive input
(i262) No. 4 R- Right channel negative input
(i262) No. 5 R+ Right channel positive input
(i262) No. 6 SLD Shield
(i262) No. 7 TX- Transmitter negative
(i262) No. 8 TX+ Transmitter positive
(i262) No. 9 EQ CHG Equalizer select (change)(1)
(i262) No. 10 L/RHD-SEL Equalizer select (change)(2)
(i262) No. 11 SPEED Vehicle speed pulse
(i262) No. 12 ACC ACC power supply
(i262) No. 13 NC Not connected
(i262) No. 14 II1- Interrupt information negative
(i262) No. 15 II1+ Interrupt information positive
(i262) No. 16 NC Not connected
(i262) No. 17 NC Not connected
(i262) No. 18 SLD2 Shield
(i262) No. 19 NC Not connected
(i262) No. 20 NC Not connected
(i262) No. 21 NMUTE Navigation mute (not used)
(i262) No. 22 NC Not connected
(i262) No. 23 NC Not connected
(i262) No. 24 TMUTE Telephone mute (not used)
NOTE:
(1) Different audio tunings are used on SDN model and OUTBACK model. Therefore, connection is selectively established as follows: For the sedan model, connection is established to GND. For the OUTBACK model, connection is not established.
(2) Different audio tunings are used on RHD model and LHD model. Therefore, connection is selectively established as follows: For the RHD model, connection is established to GND. For the LHD model, connection is not established.
