Section 21 (Vehicle Dynamics Control System (WRX))
>>
ABS Sequence Control
>>
Operation
>>
Conditions For Abs Sequence Control
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Conditions For Abs Sequence Control
WARNING:
This page is about a different car, the 2013 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

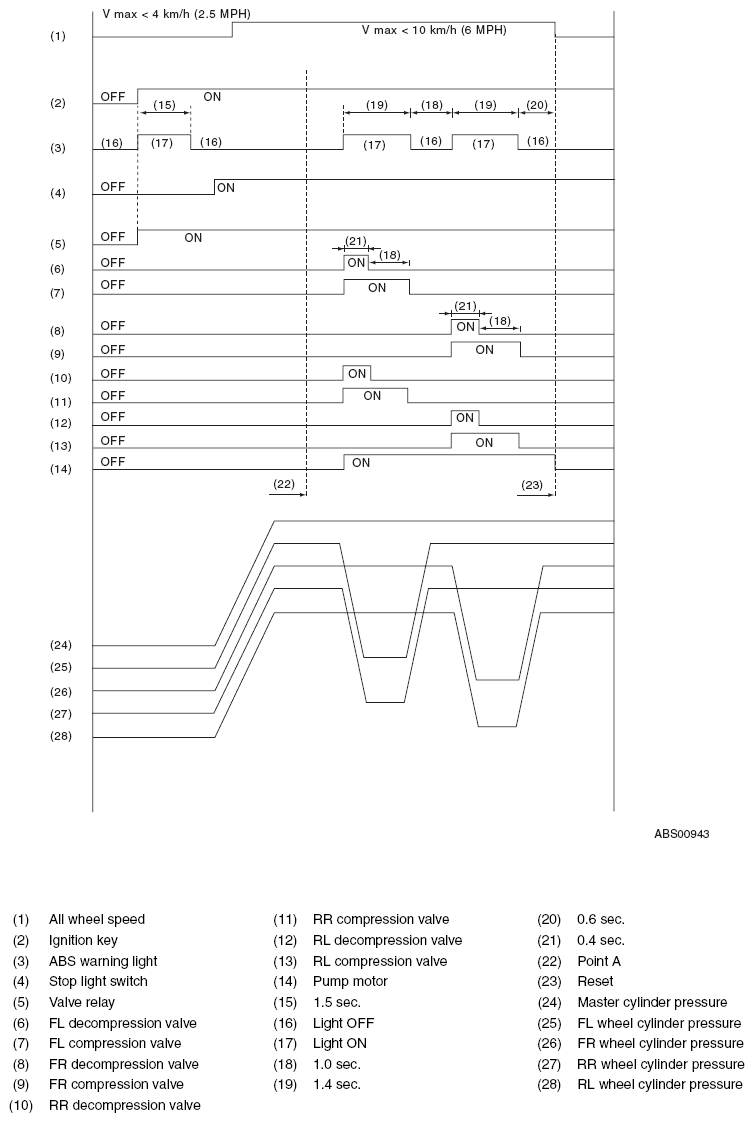

Fig 1: ABS Sequence Control Conditions Chart
Courtesy of SUBARU
NOTE:
The control operation starts at point A.
