VDC Control Module & Hydraulic Control Unit (VDCCM&H/U)

WARNING: This page is about a different car, the 2013 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

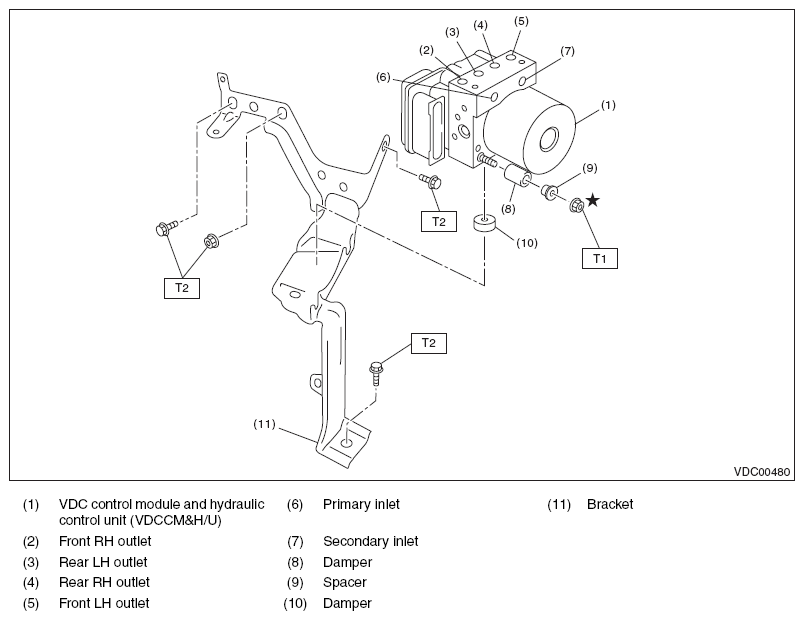

Fig 1: Identifying VDC Control Module And Hydraulic Control Unit And Related Components

Courtesy of SUBARU

Tightening torque: N.m (kgf-m, ft-lb)

T1: 7.5 (0.76, 5.5)

T2: 33 (3.36, 24.3)
