Push Button Ignition Switch: Removal

WARNING: This page is about a different car, the 2015 Subaru Outback and 2015 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground terminal from battery sensor. <Ref. to BATTERY , NOTE, Repair Contents.>
  2. Remove the cover assembly - instrument panel LWR driver. <Ref. to REMOVAL , Instrument Panel Lower Cover.>
  3. Remove the visor assembly - lower.
    1. Release the clips and claws.
    2. Disconnect the connector and remove the visor assembly - lower.
      CAUTION: Be careful not to damage the clips and claws by slowly removing the right and left edges of visor assembly - lower.

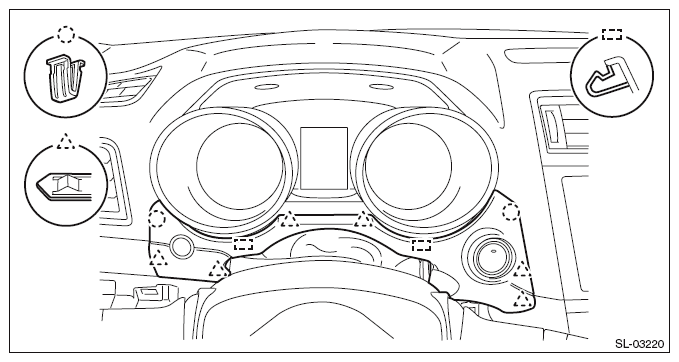

      Fig 1: Identifying Clips And Claws
      G10272985Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the push button ignition switch.
    1. Release the claws and remove the push button ignition switch from the visor assembly - lower.

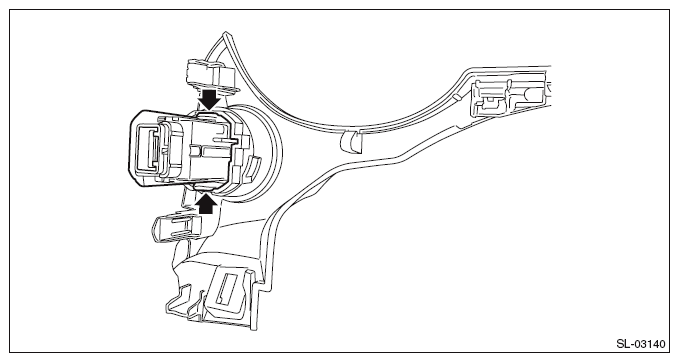

      Fig 2: Removing Push Button Ignition Switch
      G10272986Courtesy of SUBARU OF AMERICA, INC.
