Front Hood Damper Stay

WARNING: This page is about a different car, the 2015 Subaru Outback and 2015 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

Always perform works such as inspections and maintenance with both damper stays attached.
CAUTION: At the inspection and general maintenance, do not detach the damper stays.

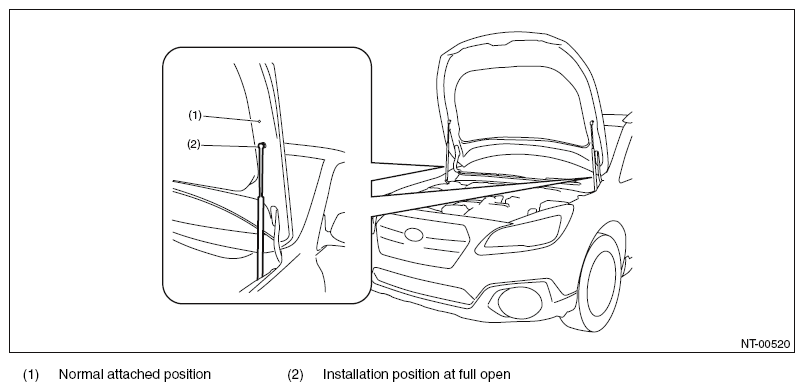

Fig 1: Identifying Normal Attach Position
Courtesy of SUBARU OF AMERICA, INC.
When wider hood opening is necessary, set the damper stay below as shown in the figure.

Tightening torque:

<Ref. to FRONT HOOD , COMPONENT, General Description.>

CAUTION:

The hood cannot be closed with the hood damper on the full open side. When it is necessary to close, tie the hood striker and the radiator panel with a string etc. to fix them.
After work, set the damper stays back to the normal position and tighten the bolts to the specified torque.

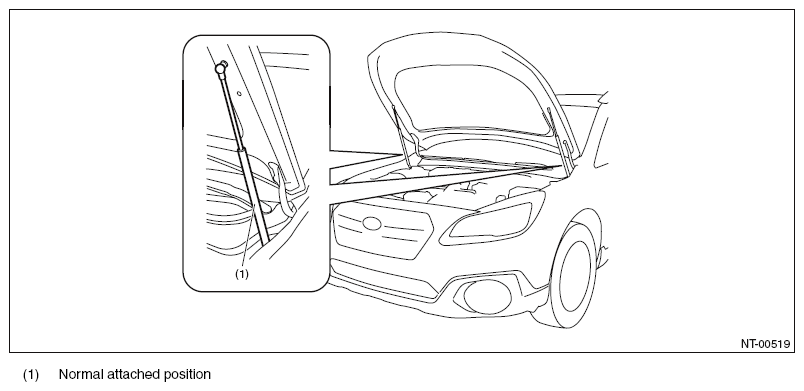

Fig 2: Supporting Vehicle Hood

Courtesy of SUBARU OF AMERICA, INC.
