Fog Light Aiming

WARNING: This page is about a different car, the 2015 Subaru Outback and 2015 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

Before checking the fog light beam level, be sure of the following:
- The area around the fog light has not sustained any accident, damage or other type of deformation.
- The vehicle is parked on a level surface.
- The inflation pressure of tires is correct.
- The vehicle does not have load.
- Vehicle's fuel tank is fully filled.
Bounce the vehicle several times to normalize the suspension.
Make certain that someone is seated in the driver's seat.
Place the vehicle with the front end facing to the measurement panel.

Fig 1: Identifying Fog Light Center Height
Courtesy of SUBARU OF AMERICA, INC.

h mm (in) at 3 m (10 ft)

40 (1.58)
Adjust the fog light beam.
1. Remove the clips, and turn over the mud guard - front.

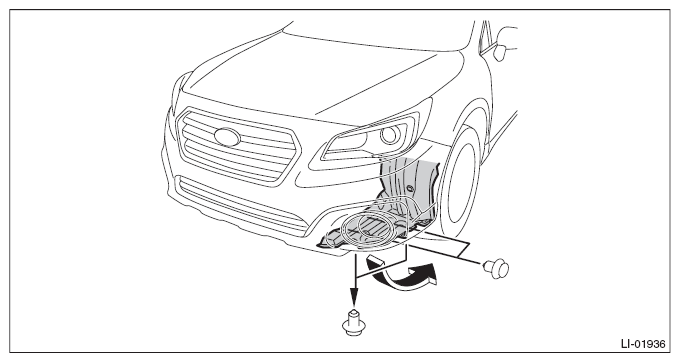

  Fig 2: Turning Over Mud Guard - Front
  Courtesy of SUBARU OF AMERICA, INC.
2. Adjust the beam level by turning the aiming screw.

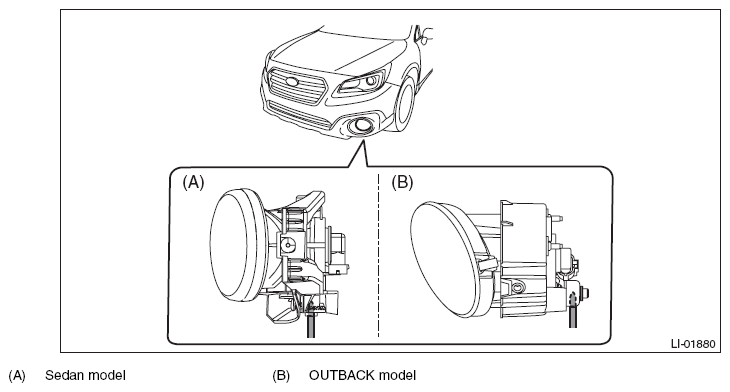

  Fig 3: Adjusting Beam Level Aiming Screw
  Courtesy of SUBARU OF AMERICA, INC.
3. Install the mud guard - front.

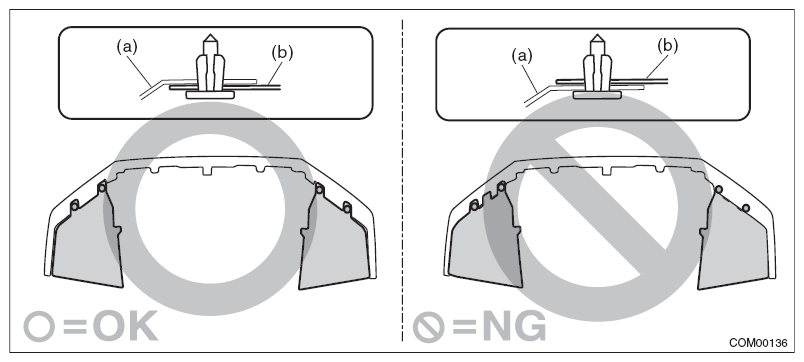

  CAUTION: Install the mud guard - front so that the front end of the mud guard (b) comes outside the bumper face - front (a).

  Fig 4: Caution For Installing Mud Guard - Front End Of Mud Guard Comes Outside Bumper Face
  Courtesy of SUBARU OF AMERICA, INC.
