Section 60 (Lighting System): General Description: Specification
WARNING: This page is about a different car, the 2015 Subaru Outback and 2015 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

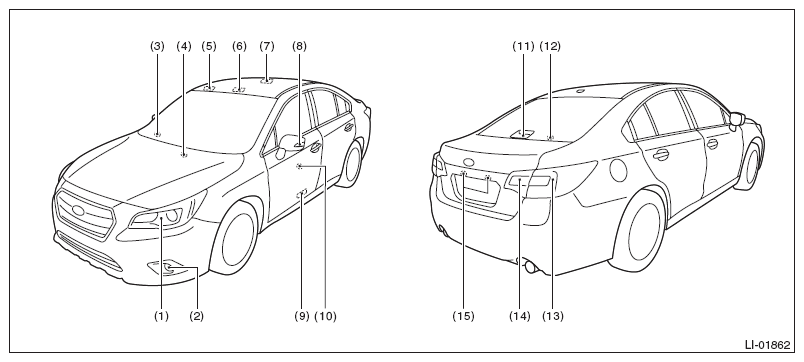

- Sedan model
No. Description Capacity and wattage Type (1) Headlight Low beam (halogen type) 12 V - 55 W H11 Low beam (HID type) 12 V - 35 W D4S High beam 12 V - 60 W HB3 Front turn signal light 12 V - 21 W WY21W Parking light 12 V - 1.2 W (LED) (1) Side marker light 12 V - 5 W W5W (2) Front fog light Model without SRF 12 V - 19 W H16 Model with SRF 12 V - 55 W H11 (3) Glove box light 12 V - 1.4 W (LED) (1) (4) Pocket light 12 V - 1.4 W (LED) (1) (5) Vanity mirror light 14 V - 1.4 W - (6) Spot map light 12 V - 8 W - (7) Room light 12 V - 8 W - (8) Side turn signal light 12 V - 1.1 W (LED) (1) (9) Door step light 12 V - 5 W W5W (10) Door pocket light 12 V - 1.4 W (LED) (1) (11) High-mounted stop light 12 V - 0.8 W (LED) (1) (12) Trunk room light 12 V - 3.8 W SAE#194 (13) Rear combination light Tail & stop light 12 V - 0.4/4.7 W (LED) (1) Turn signal light 12 V - 21 W WY21W Side marker light 12 V - 5 W W5W (14) Rear finisher light Back-up light 12 V - 16 W W16W (15) License plate light 12 V - 5 W W5W (1) Non-disassembly type - OUTBACK model

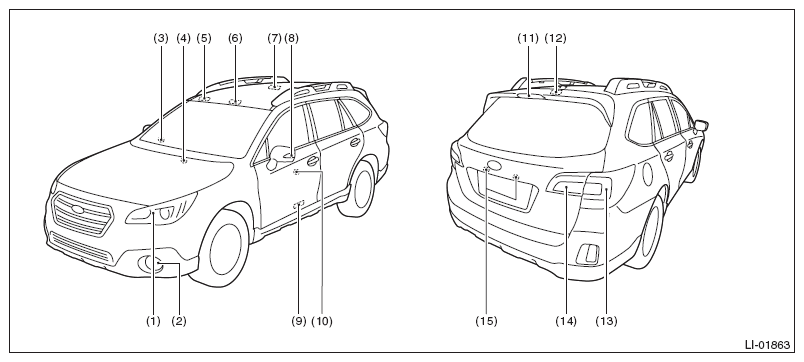

No. Description Capacity and wattage Type (1) Headlight Low beam (halogen type) 12 V - 55 W H11 Low beam (HID type) 12 V - 35 W D4S High beam 12 V - 60 W HB3 Front turn signal light 12 V - 21 W WY21W Parking light 12 V - 1.2 W (LED) (1) Side marker light 12 V - 5 W W5W (2) Front fog light Model without SRF 12 V - 55 W H11 Model with SRF 12 V - 55 W H11 (3) Glove box light 12 V - 1.4 W (LED) (1) (4) Pocket light 12 V - 1.4 W (LED) (1) (5) Vanity mirror light 14 V - 1.4 W - (6) Spot map light 12 V - 8 W - (7) Room light 12 V - 8 W - (8) Side turn signal light 12 V - 1.1 W (LED) (1) (9) Door step light 12 V - 5 W W5W (10) Door pocket light 12 V - 1.4 W (LED) (1) (11) High-mounted stop light 12 V - 1.1 W (LED) (1) (12) Luggage room light 12 V - 13 W SAE#912 (13) Rear combination light Tail & stop light 12 V - 0.4/4.7 W (LED) (1) Turn signal light 12 V - 21 W WY21W Side marker light 12 V - 5 W W5W (14) Rear finisher light Back-up light 12 V - 16 W W16W (15) License plate light 12 V - 5 W W5W (1) Non-disassembly type
