Example Of Writing For The Check Sheet Of Communication For Initializing

WARNING: This page is about a different car, the 2015 Subaru Outback and 2015 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

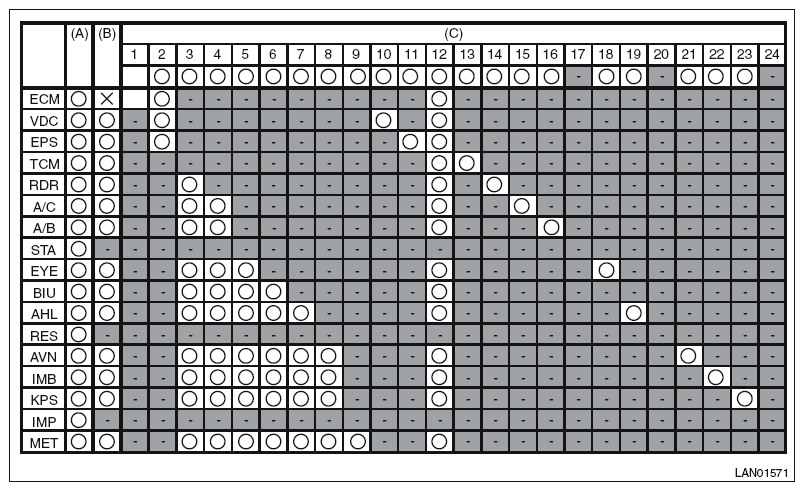

When No. 1 is open

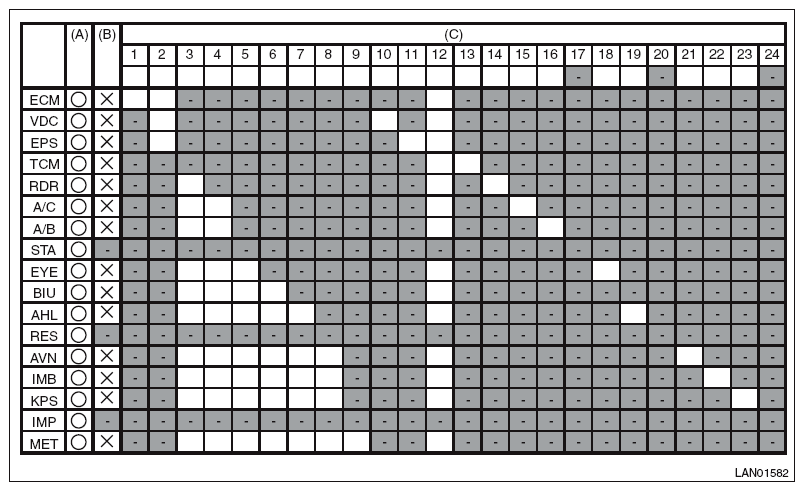

Fig 1: Communication For Initializing Check Sheet (When No. 1 Open)
Courtesy of SUBARU OF AMERICA, INC.
When No. 2 is open

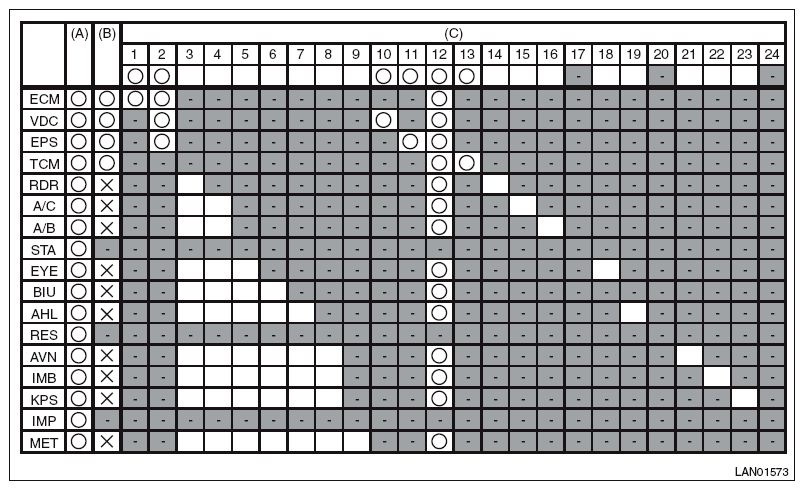

Fig 2: Communication For Initializing Check Sheet (When No. 2 Open)
Courtesy of SUBARU OF AMERICA, INC.
When No. 3 is open

Fig 3: Communication For Initializing Check Sheet (When No. 3 Open)
Courtesy of SUBARU OF AMERICA, INC.
When No. 4 is open

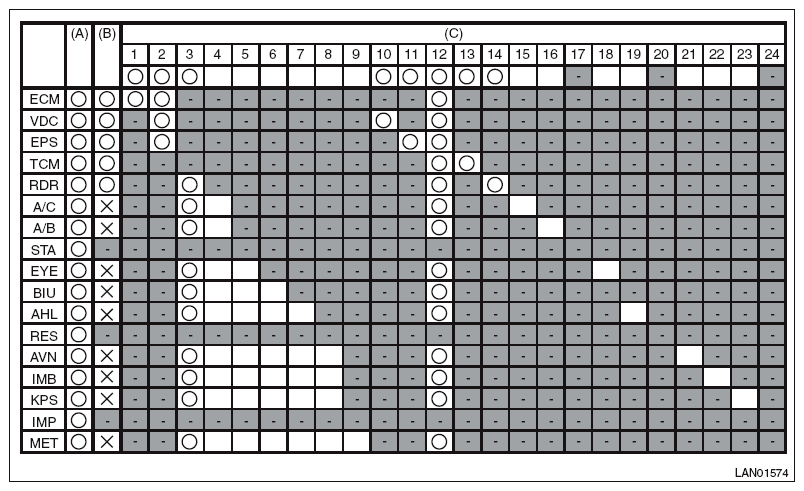

Fig 4: Communication For Initializing Check Sheet (When No. 4 Open)
Courtesy of SUBARU OF AMERICA, INC.
When No. 5 is open

Fig 5: Communication For Initializing Check Sheet (When No. 5 Open)
Courtesy of SUBARU OF AMERICA, INC.
When No. 6 is open

Fig 6: Communication For Initializing Check Sheet (When No. 6 Open)
Courtesy of SUBARU OF AMERICA, INC.
When No. 7 is open

Fig 7: Communication For Initializing Check Sheet (When No. 7 Open)
Courtesy of SUBARU OF AMERICA, INC.
When No. 8 is open

Fig 8: Communication For Initializing Check Sheet (When No. 8 Open)
Courtesy of SUBARU OF AMERICA, INC.
When No. 9 is open

Fig 9: Communication For Initializing Check Sheet (When No. 9 Open)
Courtesy of SUBARU OF AMERICA, INC.
When No. 10 is open

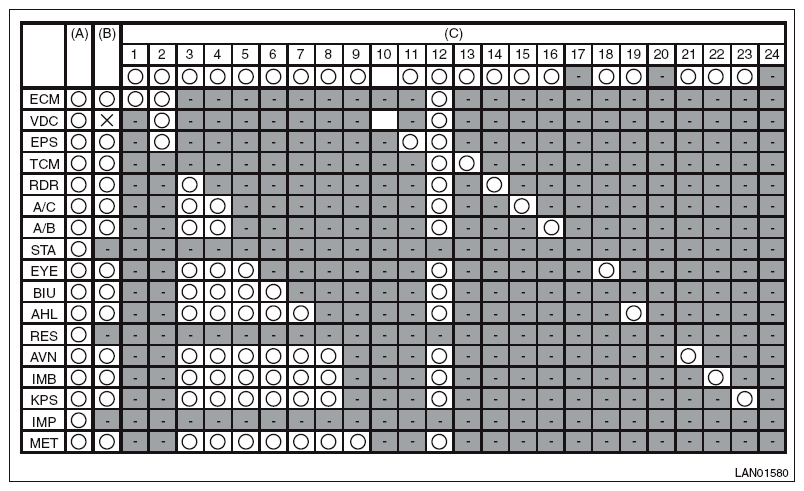

Fig 10: Communication For Initializing Check Sheet (When No. 10 Open)
Courtesy of SUBARU OF AMERICA, INC.
When No. 11 is open

Fig 11: Communication For Initializing Check Sheet (When No. 11 Open)
Courtesy of SUBARU OF AMERICA, INC.
When No. 12 is open
NOTE: 3) Perform inspection by referring to the communication initialization check (impossible to communicate with all modules). (There may be a malfunction other than open circuit)

Fig 12: Communication For Initializing Check Sheet (When No. 12 Open)
Courtesy of SUBARU OF AMERICA, INC.
When No. 13 is open

Fig 13: Communication For Initializing Check Sheet (When No. 13 Open)
Courtesy of SUBARU OF AMERICA, INC.
When No. 14 is open

Fig 14: Communication For Initializing Check Sheet (When No. 14 Open)
Courtesy of SUBARU OF AMERICA, INC.
When No. 15 is open

Fig 15: Communication For Initializing Check Sheet (When No. 15 Open)
Courtesy of SUBARU OF AMERICA, INC.
When No. 16 is open

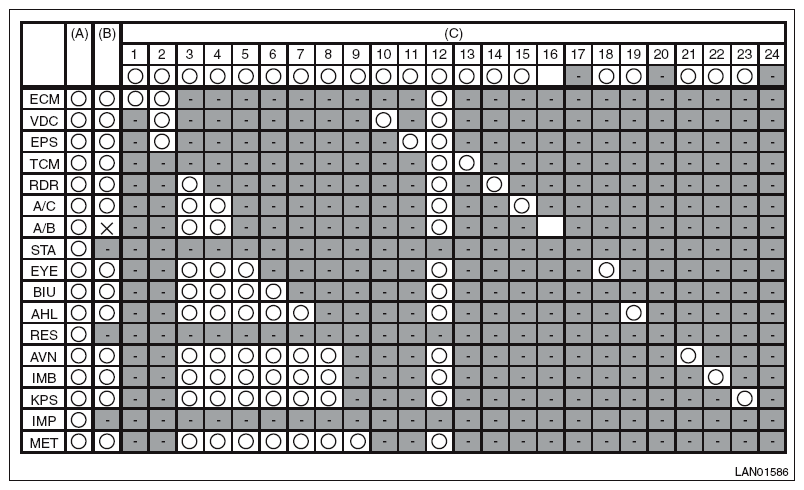

Fig 16: Communication For Initializing Check Sheet (When No. 16 Open)
Courtesy of SUBARU OF AMERICA, INC.
When No. 17 is open
NOTE: This is the same as No. 20 and No. 24, but it is possible to diagnose using examples of lost communication detection in each module. <Ref. to EXAMPLE OF DTC DATA NOT RECEIVED , LIST, List of Diagnostic Trouble Code (DTC).>

Fig 17: Communication For Initializing Check Sheet (When No. 17 Open)
Courtesy of SUBARU OF AMERICA, INC.
When No. 18 is open

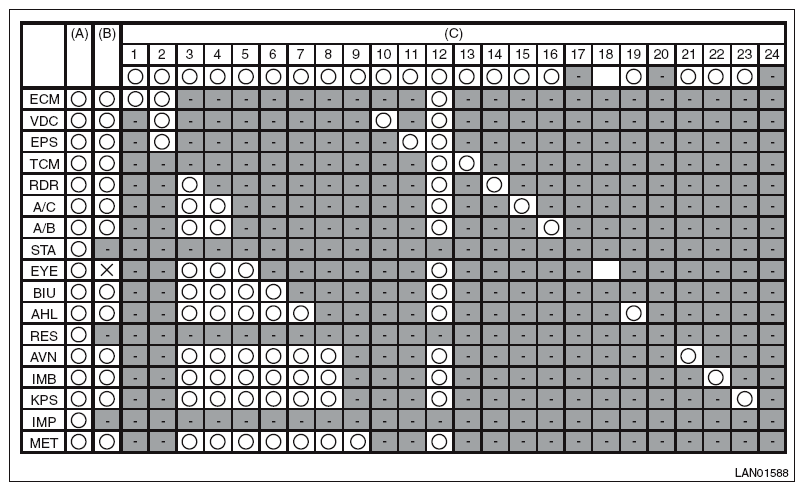

Fig 18: Communication For Initializing Check Sheet (When No. 18 Open)
Courtesy of SUBARU OF AMERICA, INC.
When No. 19 is open

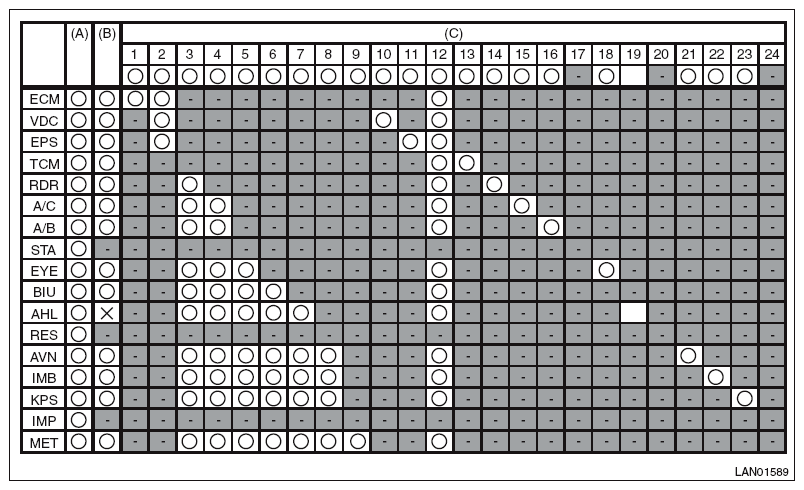

Fig 19: Communication For Initializing Check Sheet (When No. 19 Open)
Courtesy of SUBARU OF AMERICA, INC.
When No. 20 is open
NOTE: This is the same as No. 17 and No. 24, but the remote engine starter does not operate while no DTC is detected.

Fig 20: Communication For Initializing Check Sheet (When No. 20 Open)
Courtesy of SUBARU OF AMERICA, INC.
When No. 21 is open

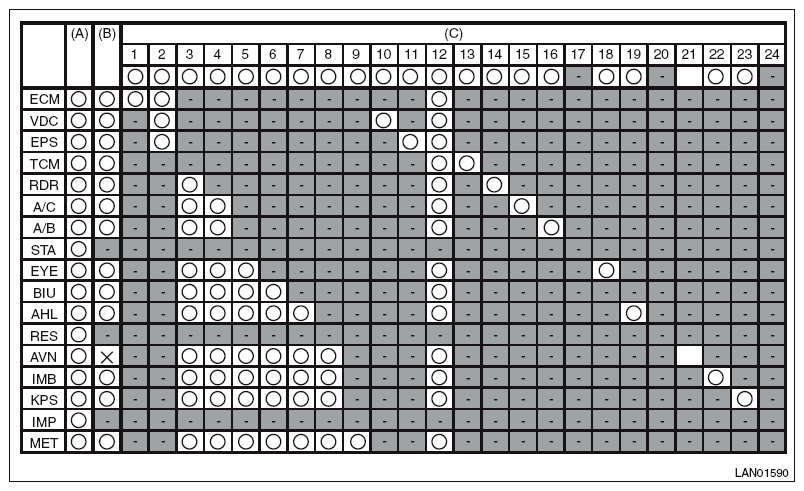

Fig 21: Communication For Initializing Check Sheet (When No. 21 Open)
Courtesy of SUBARU OF AMERICA, INC.
When No. 22 is open

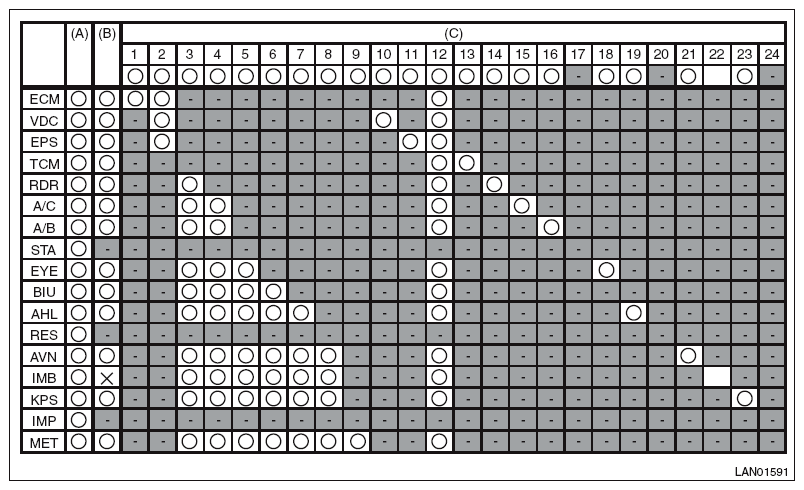

Fig 22: Communication For Initializing Check Sheet (When No. 22 Open)
Courtesy of SUBARU OF AMERICA, INC.
When No. 23 is open

Fig 23: Communication For Initializing Check Sheet (When No. 23 Open)
Courtesy of SUBARU OF AMERICA, INC.
When No. 24 is open
NOTE: This is the same as No. 17 and No. 20, but the impact sensor does not operate while no DTC is detected.

Fig 24: Communication For Initializing Check Sheet (When No. 24 Open)
Courtesy of SUBARU OF AMERICA, INC.
