Control Valve Body: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Clean the mating surface of oil pan and transmission case.
  2. Make sure that the CVTF filter is installed to the transmission case.
    NOTE: Make sure that the CVTF filter does not protrude from the transmission case.

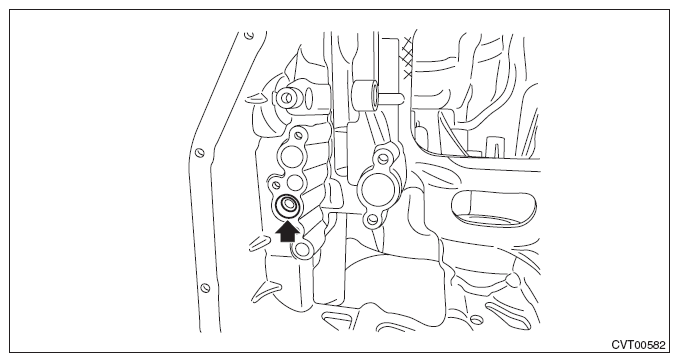

    Fig 1: Locating Transmission Case CVTF Filter Hole
    G10268172Courtesy of SUBARU OF AMERICA, INC.
  3. Check the control valve body for dust and other foreign matter.
  4. Install the O-ring to the pressure pipe.
    NOTE:
    • Use new O-rings.
    • Apply CVTF to the O-rings.
    Fig 2: Identifying Pressure Pipe O-Rings
    G06654455Courtesy of SUBARU OF AMERICA, INC.
  5. Install the pressure pipe.
    Fig 3: Identifying Pressure Pipe
    G06654453Courtesy of SUBARU OF AMERICA, INC.
  6. Install the control valve body to the transmission.
    CAUTION:
    • Beware of the transmission harness getting caught in between.
    • Do not impact or bend the transmission harness because it has the oil temperature sensor inside.
    NOTE:
    • Engage the manual valve to the manual plate.
    • Lead the transmission harness through from the point indicated by dashed line in the figure.

    Tightening torque:

    9 N.m (0.9 kgf-m, 6.6 ft-lb)

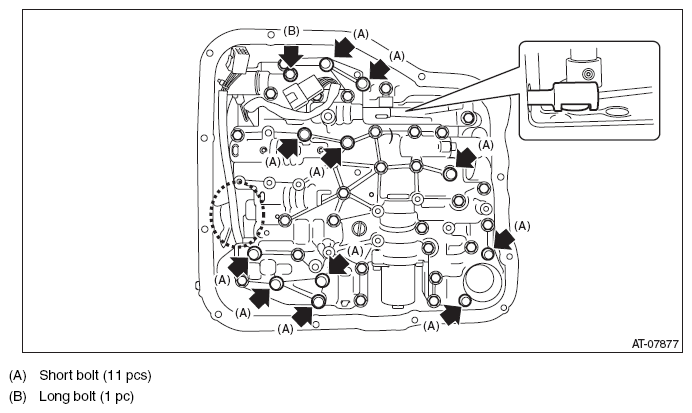

    Fig 4: Locating Transmission Control Valve Body Bolts
    G10268175Courtesy of SUBARU OF AMERICA, INC.
  7. Install the O-ring to oil strainer and install the oil strainer.
    NOTE:
    • Use new O-rings.
    • Apply CVTF to the O-rings.
    • Let the transmission harness run between control valve body and oil strainer.

    Tightening torque:

    9 N.m (0.9 kgf-m, 6.6 ft-lb)

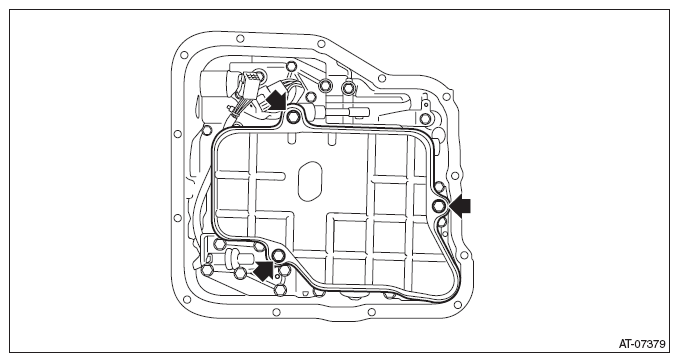

    Fig 5: Locating Control Valve Body And Oil Strainer Bolts
    G09482019Courtesy of SUBARU OF AMERICA, INC.
  8. Connect the control valve harness connector.

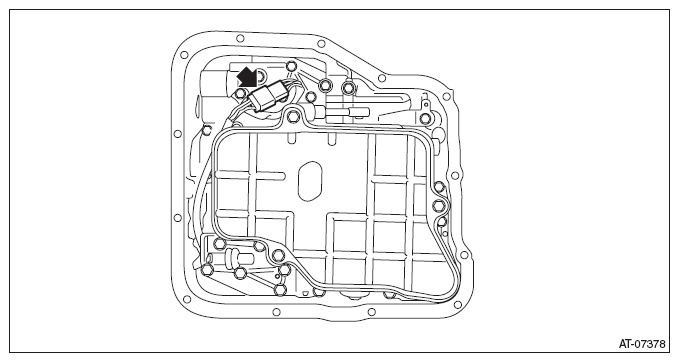

    Fig 6: Locating Control Valve Harness Connector
    G09482018Courtesy of SUBARU OF AMERICA, INC.
  9. Clean the magnet.
  10. Attach the magnet at the specified position of the oil pan.
    Fig 7: Identifying Oil Pan Magnet Position
    G09482029Courtesy of SUBARU OF AMERICA, INC.
  11. Apply liquid gasket all around the oil pan mating surface seamlessly.

    Liquid gasket:

    THREE BOND 1217B (Part No. K0877YA020) or equivalent

    Fig 8: Identifying Oil Pan Mating Surface Liquid Gasket
    G09482030Courtesy of SUBARU OF AMERICA, INC.
  12. Install the oil pan by equally tightening the bolts.
    CAUTION: Beware of the transmission harness getting caught in between.

    Tightening torque:

    5 N.m (0.5 kgf-m, 3.7 ft-lb)

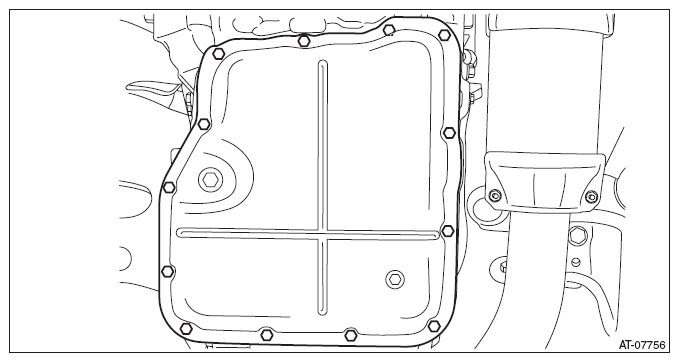

    Fig 9: Identifying Oil Pan Bolts
    G10268180Courtesy of SUBARU OF AMERICA, INC.
  13. Connect the ground terminal to battery sensor. <Ref. to BATTERY , NOTE, Note.>
  14. Adjust the CVTF level. <Ref. to ADJUSTMENT , CVTF.>
  15. Perform the operation of AT learning mode. <Ref. to LEARNING CONTROL .>
