Transmission Control Device: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the transmission assembly from the vehicle. <Ref. to REMOVAL , Automatic Transmission Assembly.>
Remove the oil pan and control valve body. <Ref. to REMOVAL , Control Valve Body.>
Remove the inhibitor switch. <Ref. to REMOVAL , Inhibitor Switch.>
Remove the spring pin.
NOTE: Prevent the spring pin from dropping in the transmission using paper towel etc.

Fig 1: Locating Transmission Spring Pin
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolt and remove the range select lever, manual plate and parking rod.
NOTE: Do not damage the lip of oil seal press-fitted in the case.

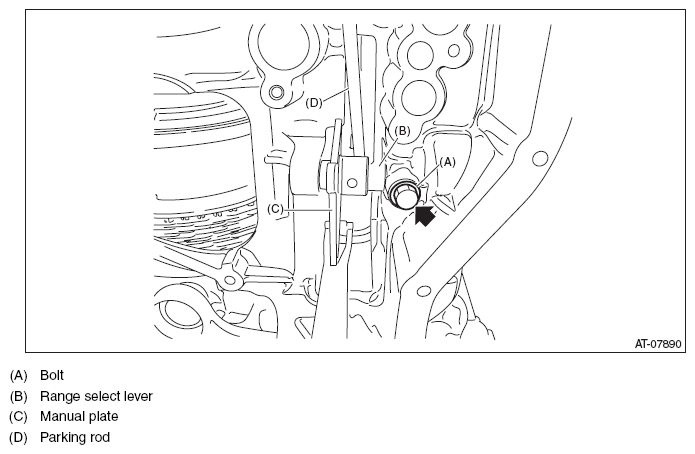

Fig 2: Locating Transmission Control Device Bolt
Courtesy of SUBARU OF AMERICA, INC.
Remove the detent spring.

Fig 3: Locating Detent Spring Bolt

Courtesy of SUBARU OF AMERICA, INC.
