Transmission Control Module (TCM): Installation
WARNING: This page is about a different variant/trim than selected.
- Install the TCM to the bracket.
Tightening torque:
7.5 N.m (0.8 kgf-m, 5.5 ft-lb)
- Install the TCM.
Tightening torque:
7.5 N.m (0.8 kgf-m, 5.5 ft-lb)
- Install the harness connector to TCM.NOTE:
- Install the connector in the reverse order of removal.

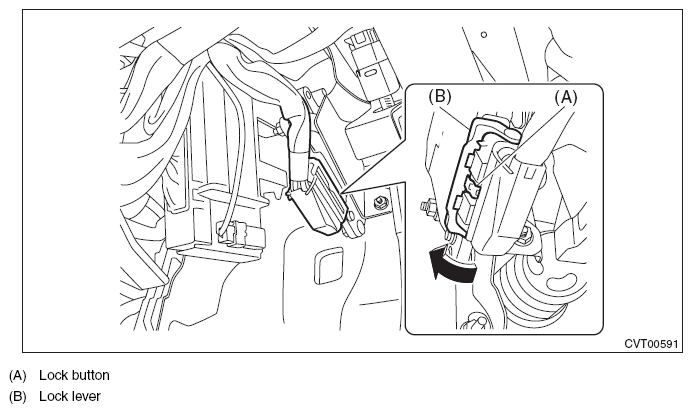

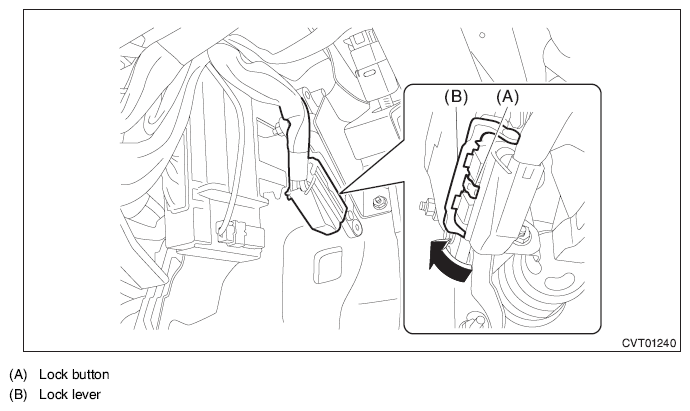

- Move the lock lever in the arrow direction, and confirm that a clicking sound is heard.
- Connect the ground terminal to battery sensor. <Ref. to BATTERY , NOTE, Note.>
- Perform the operation of AT learning mode. <Ref. to LEARNING CONTROL .>
