Auto Headlight Beam Leveler Control Module: Removal

WARNING: This page is about a different car, the 2015 Subaru Outback and 2015 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the ground terminal from battery sensor. <Ref. to BATTERY , NOTE, Repair Contents.>
Remove the cover assembly - instrument panel LWR driver. <Ref. to REMOVAL , Instrument Panel Lower Cover.>
Remove the bolts, and then remove the panel - knee guard.

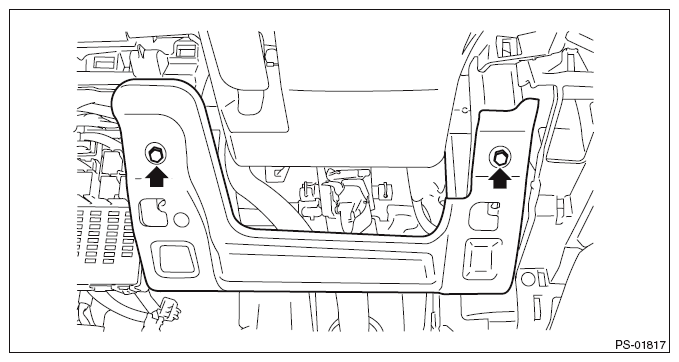

Fig 1: Locating Bolts And Knee Guard Panel
Courtesy of SUBARU OF AMERICA, INC.
Release the lock and remove the relay holder.

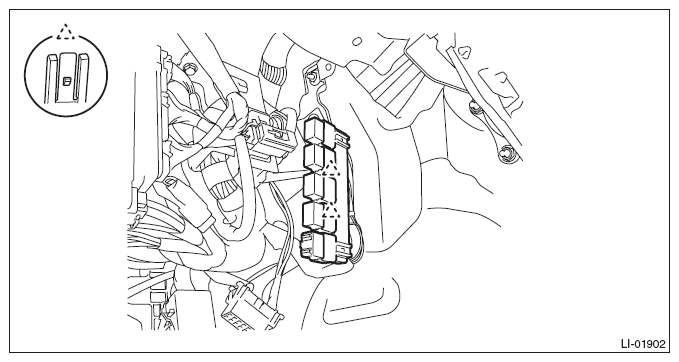

Fig 2: Removing Relay Holder
Courtesy of SUBARU OF AMERICA, INC.
Remove the auto headlight beam leveler CM.
1. Remove the nut.
2. Disconnect the connector and remove the auto headlight beam leveler CM.

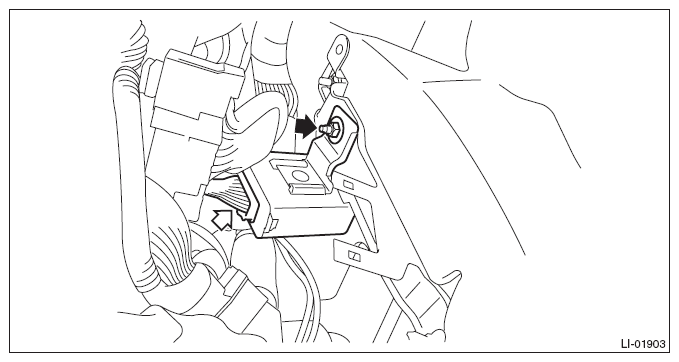

  Fig 3: Removing Auto Headlight Beam Leveler CM
  Courtesy of SUBARU OF AMERICA, INC.
