5 Door Model/XV Model

  1. Disconnect the ground cable from battery. < Ref. to BATTERY , NOTE, Note.>
    NOTE: For the 12 volt engine restart battery of HEV model, disconnect the ground terminal from 12V engine restart battery sensor.
  2. Remove the trim panel - rear apron LH. < Ref. to REMOVAL , Rear Quarter Trim.>
  3. Remove the keyless entry control module.
    1. Disconnect the connector.
    2. Remove the bolt and then remove the keyless entry control module.

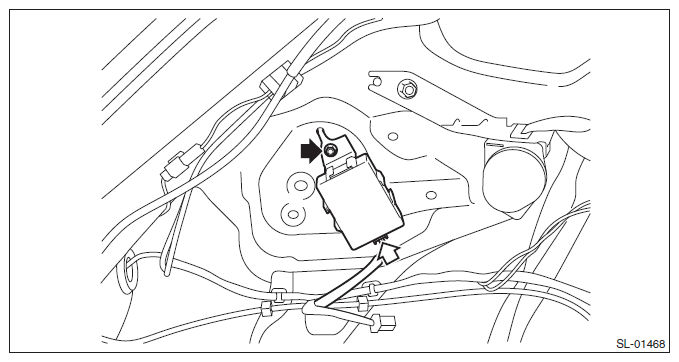

      Fig 1: Locating Bolt Of Keyless Entry Control Module (5 Door Model)
      G08319278Courtesy of SUBARU OF AMERICA, INC.
