4 Door Model

  1. Disconnect the ground cable from battery.
  2. Remove the trim panel assembly - rear shelf. < Ref. to REMOVAL , Rear Shelf Trim.>
  3. Remove the keyless entry control module.
    1. Disconnect the connector.
    2. Remove the bolt and then remove the keyless entry control module.

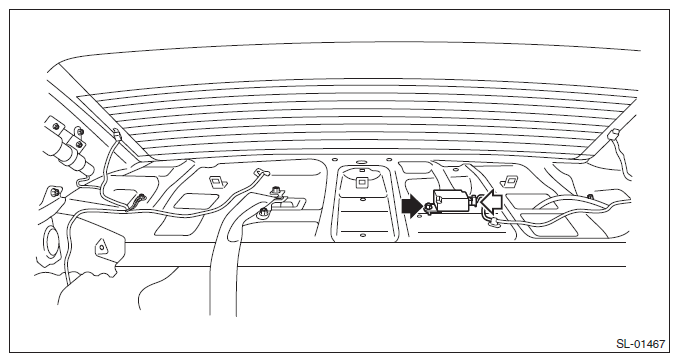

      Fig 1: Locating Bolt Of Keyless Entry Control Module (4 Door Model)
      G08319277Courtesy of SUBARU OF AMERICA, INC.
