Fixed Glass (5 Door Model/XV Model)

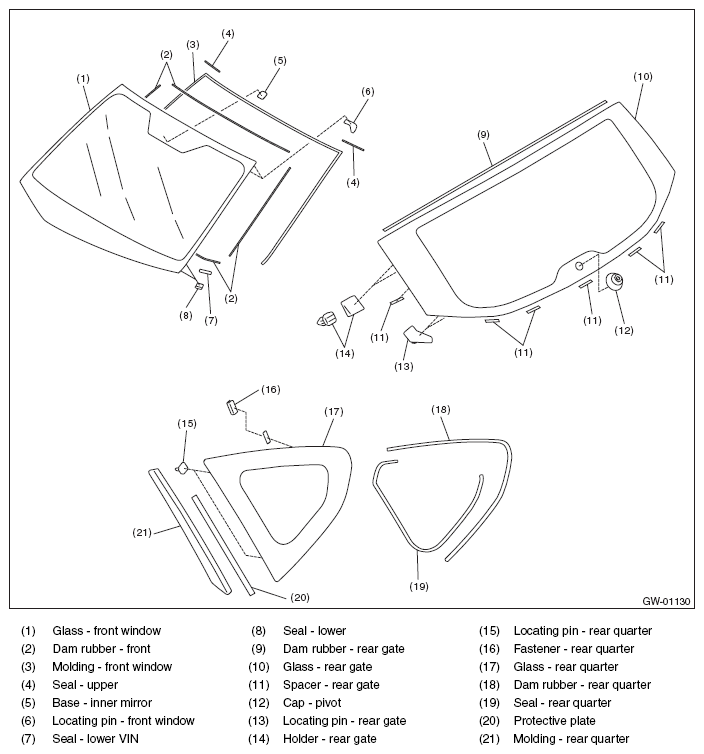

Fig 1: Identifying Fixed Glass Components (5 Door Model/XV Model)
G09489623Courtesy of SUBARU OF AMERICA, INC.
