Engine Wiring Harness: Installation

Route the engine wiring harness around the engine and connect connectors.
- Structural diagram 1

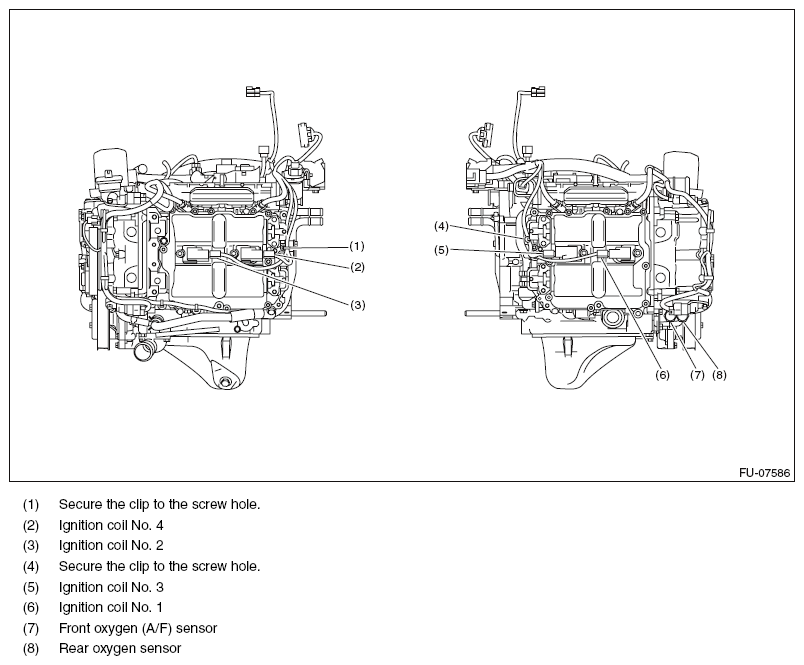

  Fig 1: Fuel Injection (Fuel Systems) Structural Diagram 1
  Courtesy of SUBARU OF AMERICA, INC.

  Tightening torque: N.m (kgf-m, ft-lb)

  T1: 7.5 (0.8, 5.5)

  T2: 19 (1.9, 14.0)
- Structural diagram 2

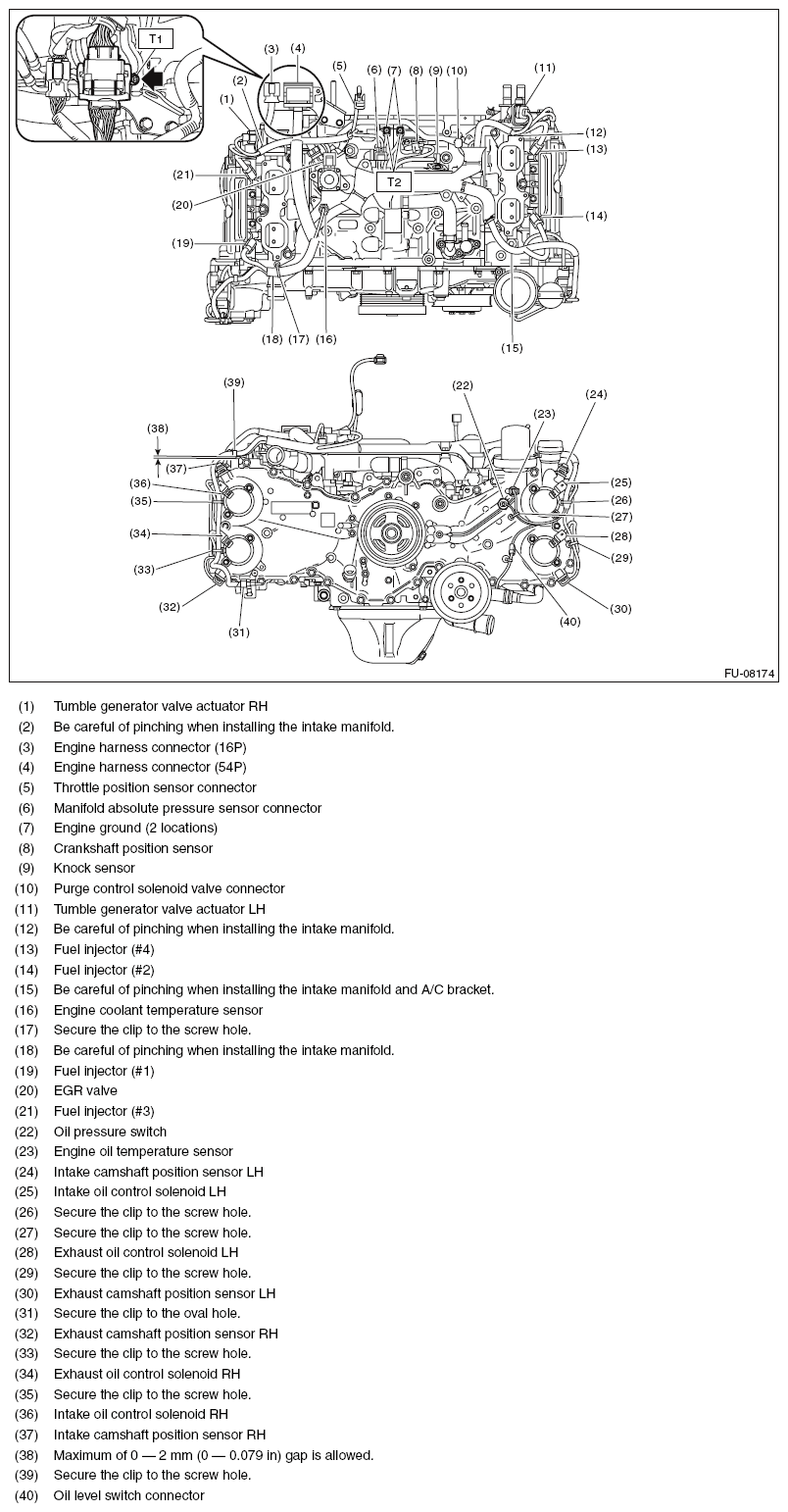

  Fig 2: Fuel Injection (Fuel Systems) Structural Diagram 2
  Courtesy of SUBARU OF AMERICA, INC.
Install the engine wiring harness.
Tightening torque:

6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

Fig 3: Locating Engine Wiring Harness Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install the intake manifold. < Ref. to INSTALLATION , Intake Manifold.>
Connect the battery ground terminal.

Fig 4: Connecting Battery Ground Terminal
Courtesy of SUBARU OF AMERICA, INC.
