Read Freeze Frame Data For Engine (OBD Mode)

NOTE:

For detailed operation procedures, refer to "PC application help for Subaru Select Monitor".

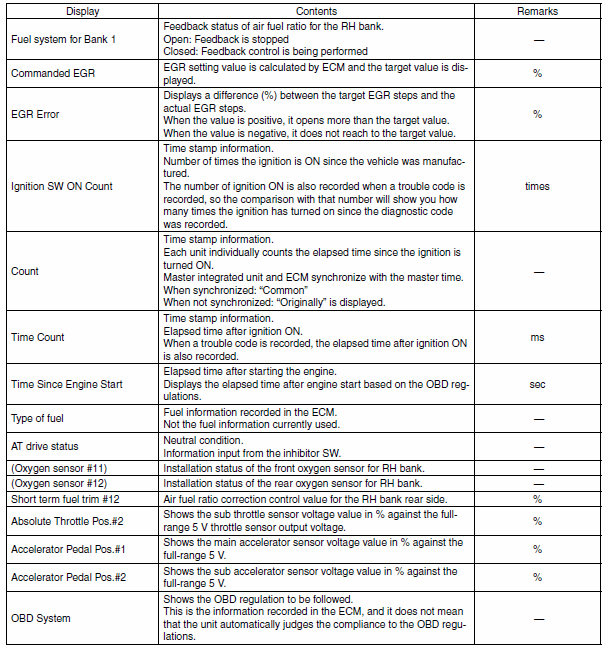

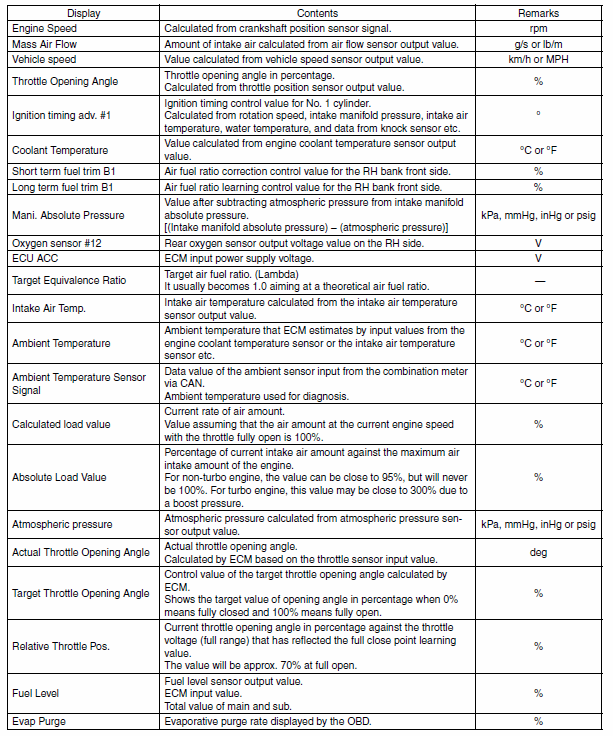

A list of the support data is shown in the following illustrations.

Fig 1: Read Freeze Frame Data For Engine (OBD Mode) - Circuit Diagram (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Fig 2: Read Freeze Frame Data For Engine (OBD Mode) - Circuit Diagram (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
