Model With Push Button Ignition Switch

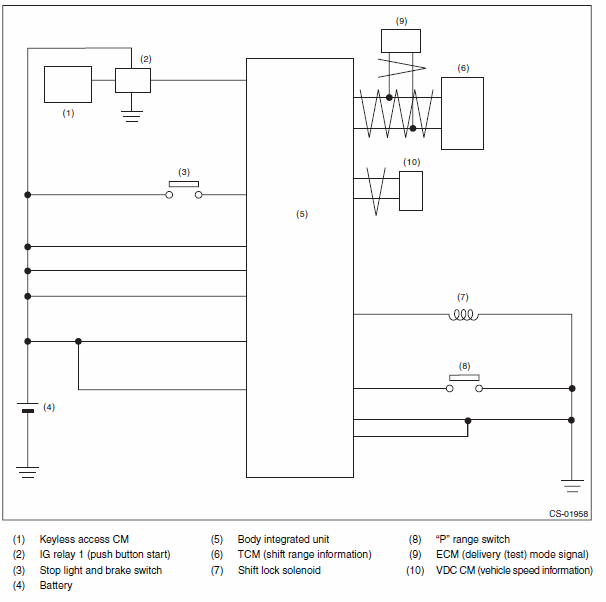

Fig 1: AT Shift Lock Control System - Wiring Diagram (With Push Button Ignition Switch)
