Cruise Control Main Switch: Removal
WARNING: This page is about a different car, the 2014 Subaru BRZ. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnection of the battery ground terminal (Refer to
WORKING PRECAUTIONS AND NOTES
)WARNING: Airbag and pretensioner system are equipped with backup power supply. Therefore, if any operation is started within 60 seconds after disconnecting the battery ground terminal, the airbag can deploy.
- REMOVE STEERING WHEEL ASSEMBLY (Refer to REMOVAL )
- REMOVE CRUISE CONTROL MAIN SWITCH ASSEMBLY

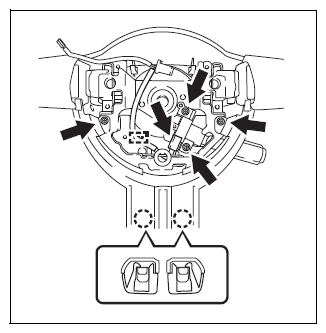

- Remove the 4 screws.
- Engage the 2 claws and remove the lower steering wheel cover and cruise control main switch assembly.
- Disengage the clamp and disconnect the cruise control main switch wire connector.
