Subaru
>>
2016
>>
BRZ Limited, Automatic Trans
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Automatic Transmission (Diagnostics)
>>
Automatic Transmission System
>>
Paddle Shift Switch System
>>
Circuit figure
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Circuit figure

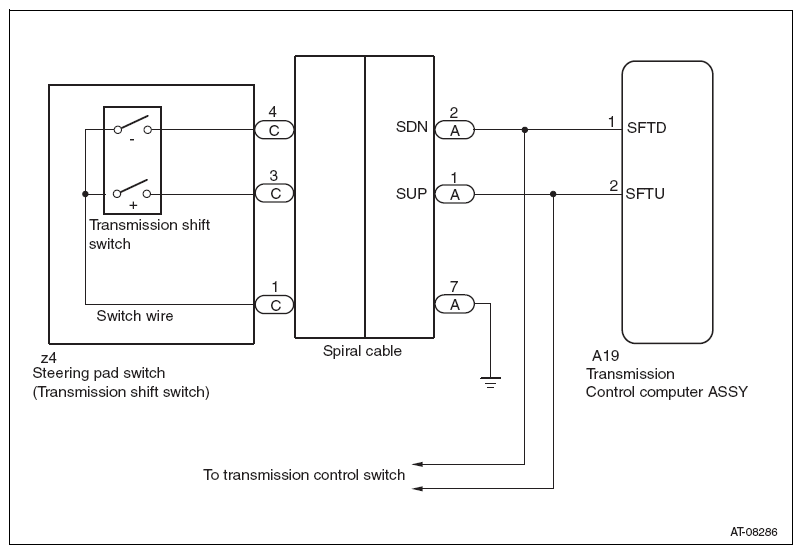

Fig 1: Paddle Shift Switch System Circuit Diagram
Courtesy of SUBARU OF AMERICA, INC.
