Select Lever: Installation

1. Temporarily install the select lever Assembly with 4 bolts.
   CAUTION: Keep the wiring harness from being caught in.
2. Tighten 4 bolts to the specified torque in the order shown in the figure.

   Standard value: T=18N.m {184kgf.cm} {13.3ft.lbf}

Fig 1: Locating Select Lever Assembly Bolt Tightening Sequence
Courtesy of SUBARU OF AMERICA, INC.
3. Install the wiring harness clamp to the select lever Assembly.
4. Connect the connector.
5. Set the select lever to N position.
6. Insert a 0.3 mm thickness gauge between the select lever and the guide plate, and secure it with tape, etc.
   CAUTION: Keep the thickness gauge from entering the portion (arc) shown in the figure.

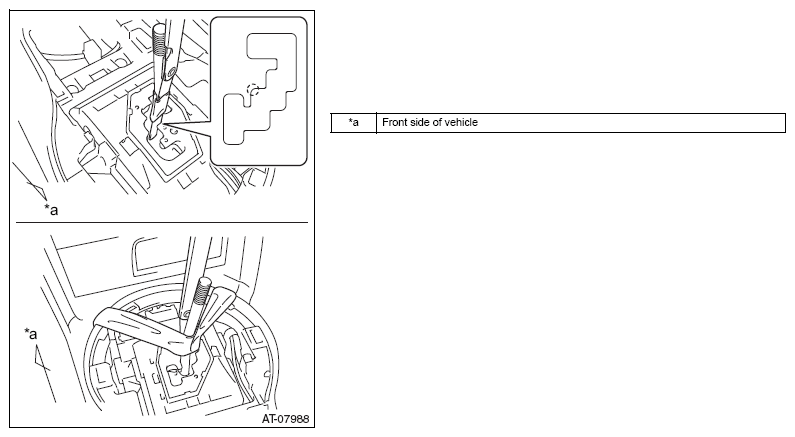

   Fig 2: Inserting Thickness Gauge Between Select Lever And Guide Plate

   Courtesy of SUBARU OF AMERICA, INC.

1. Pull the floor shift gear shifting rod Sub-Assembly No. 1 toward the rear of the vehicle until it stops, then put it back 2 steps (to N position).
Fig 3: Pulling Floor Shift Gear Shifting Rod Sub-Assembly No. 1 Toward Rear Of Vehicle
Courtesy of SUBARU OF AMERICA, INC.
2. Temporarily install the floor shift gear shifting rod Sub-Assembly No. 1 with a nut while seating it on the flat surface of the swivel.
   CAUTION: Be sure to seat it by hand and temporarily tighten the nut.
3. Tighten the nut with the arm COMPL lightly pressed toward the rear of the vehicle.

   Standard value: T=18N.m {184kgf.cm} {13ft.lbf}

   CAUTION:

   • Do not press the arm COMPL excessively.
   • Check that the floor shift gear shifting rod Sub-Assembly No. 1 remains seated on the flat surface of the swivel.
   Fig 4: Locating Nut With Arm COMPL

   Courtesy of SUBARU OF AMERICA, INC.

(Refer to DISASSEMBLY )
