Exploded View

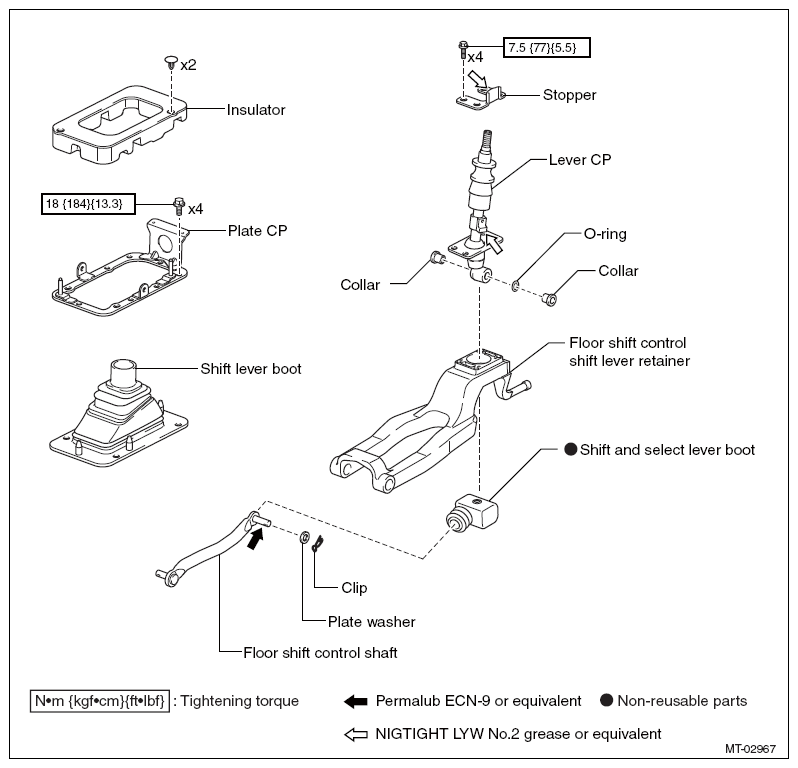

Fig 1: Exploded View Of Floor Shift, Shift Lever Assembly With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
