Vehicle Stability Control (VSC) System
>>
Vehicle Stability Control System
>>
Parts Location
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Parts Location

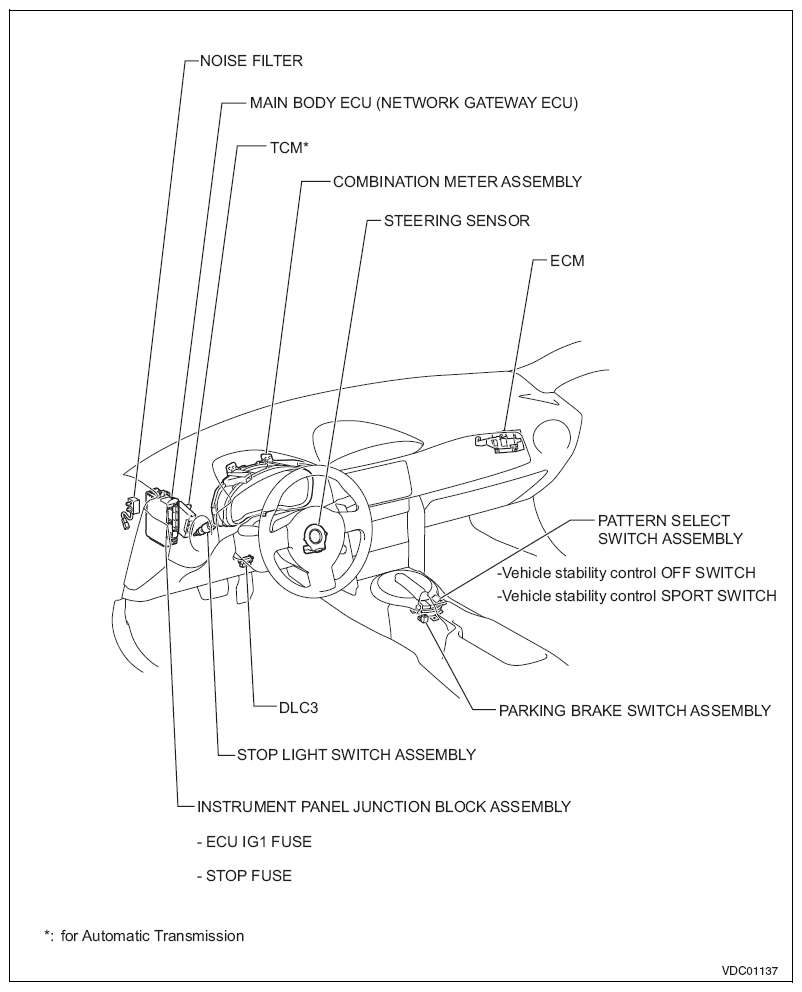

Fig 1: Vehicle Stability Control System Component Location (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

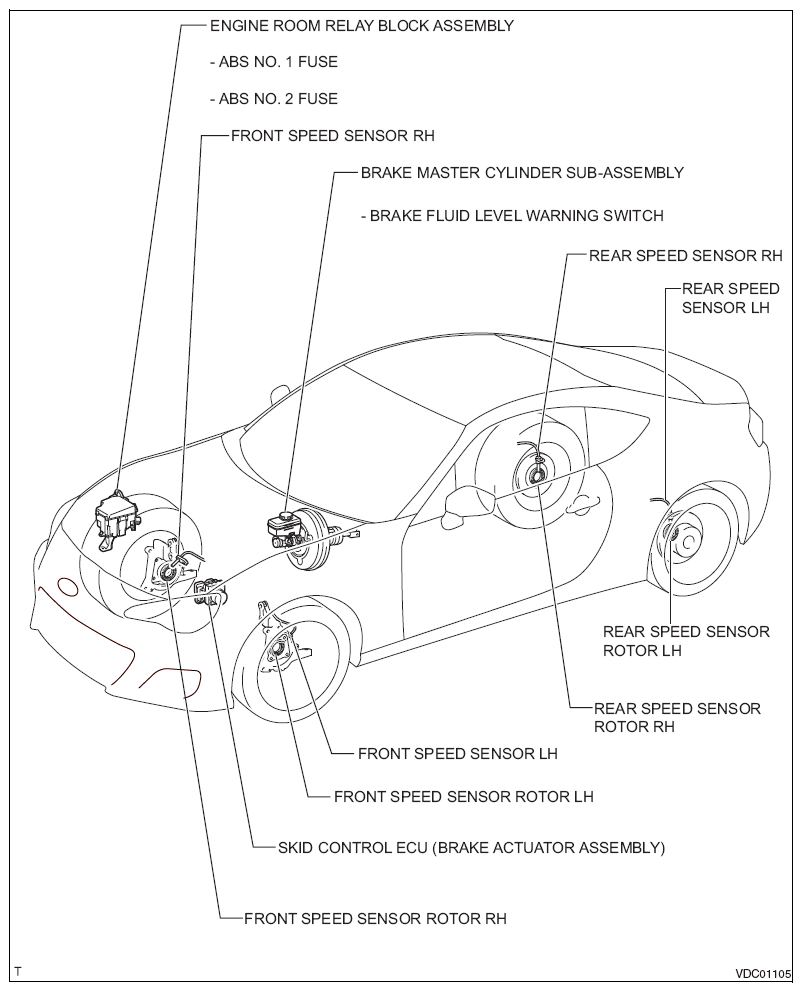

Fig 2: Vehicle Stability Control System Component Location (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
