Intake Manifold Assembly (Fa20): Disassembly

  1. Remove Manifold Absolute Pressure Sensor
    1. Remove the bolt and manifold absolute pressure sensor from the intake manifold.
      Fig 1: Locating Manifold Absolute Pressure Sensor Bolt
      G08556506Courtesy of SUBARU OF AMERICA, INC.
    2. Remove the O-ring from the manifold absolute pressure sensor.
      Fig 2: Locating Manifold Absolute Pressure Sensor O-Ring
      G10213820Courtesy of SUBARU OF AMERICA, INC.
  2. Remove Purge Control Solenoid Valve
    1. Disconnect the No. 1 fuel vapor feed hose from the intake manifold.
      Fig 3: Locating No. 1 Fuel Vapor Feed Hose
      G10213821Courtesy of SUBARU OF AMERICA, INC.
    2. Remove the nut and purge control solenoid valve.
      Fig 4: Locating Purge Control Solenoid Valve Nut
      G08556509Courtesy of SUBARU OF AMERICA, INC.
  3. Remove Cap (for Automatic Transmission)
    1. Remove the cap from the intake manifold.
      Fig 5: Locating Intake Manifold Cap
      G08556510Courtesy of SUBARU OF AMERICA, INC.
  4. Remove Fuel Delivery Pipe (for Bank 2)
    1. Disconnect the No. 3 fuel delivery pipe sub-assembly from the fuel delivery pipe (for bank 2).
      CAUTION:
      • If the connector and pipe are stuck, pinch the fuel delivery pipe No. 3 by hand and push and pull the connector to disconnect it.
      • Do not allow any scratches or foreign matter on the parts when disconnecting them, as the No. 3 fuel delivery pipe joint contains the O-rings that seal the plug.
      • Do not use any tools to separate the pipe and connector.
      • Do not forcibly bend, twist or turn the nylon tube.
      • If the pipe and connector are stuck together, pinch the tube between your fingers and turn it carefully to free it. Then, disconnect the main tube.
      • Protect the disconnected part by covering it with a plastic bag and tape after disconnecting the main tube.
      • Check that the top hat cannot be pulled out.

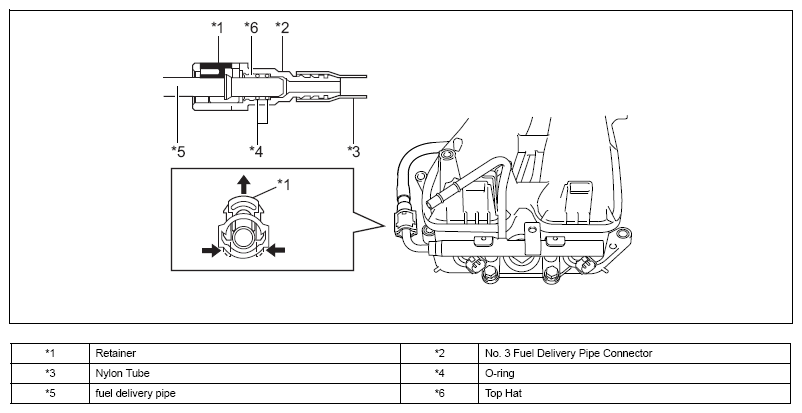

      Fig 6: Removing Fuel Delivery Pipe (Bank 2)
      G10213824Courtesy of SUBARU OF AMERICA, INC.
    2. Remove the 2 bolts and the fuel delivery pipe (for bank 2) from the intake manifold.
      Fig 7: Locating Fuel Delivery Pipe Bolts
      G10213825Courtesy of SUBARU OF AMERICA, INC.
  5. Remove Fuel Delivery Pipe (For Bank 1)
    NOTE: Use the same procedure described for the fuel delivery pipe (for bank 2).
  6. Remove No. 3 Fuel Delivery Pipe
    1. Disengage the 3 clamps and remove the No. 3 fuel delivery pipe from the intake manifold.
      Fig 8: Locating Fuel Delivery Pipe Clamps
      G10213826Courtesy of SUBARU OF AMERICA, INC.
