Exploded View

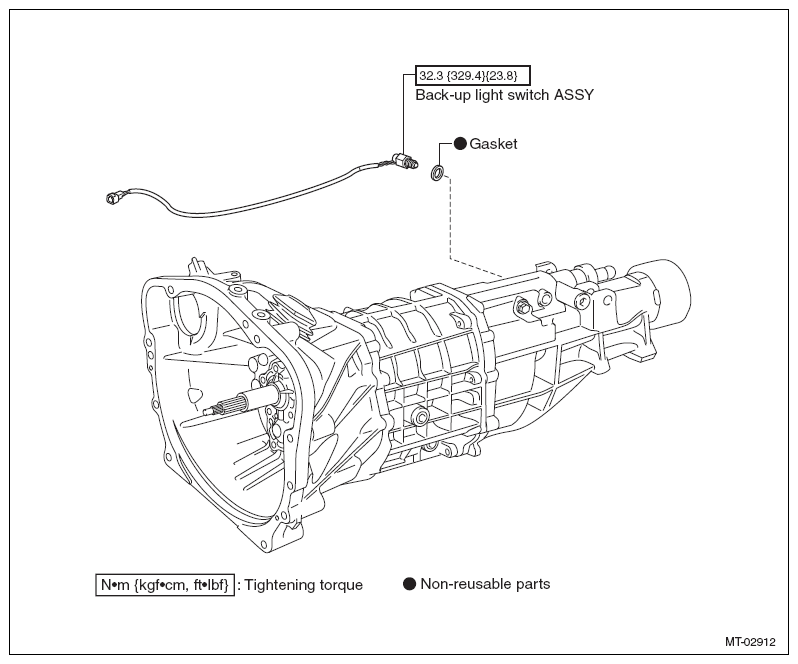

Fig 1: Exploded View Of Back Up Light Switch With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
