Exploded View

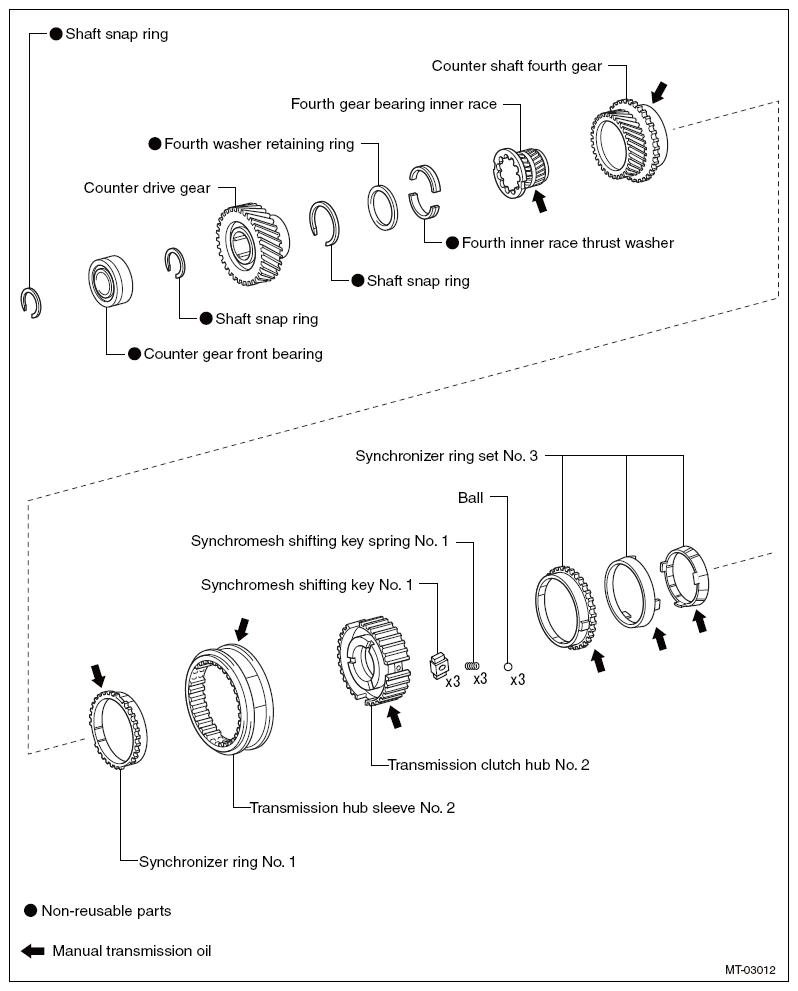

Fig 1: Exploded View Of Counter Gear Assembly
G10215055Courtesy of SUBARU OF AMERICA, INC.
NOTE: Be sure to use the recommended product or the substitute product for manual transmission oil. (Refer to MANUAL TRANSMISSION OIL  )

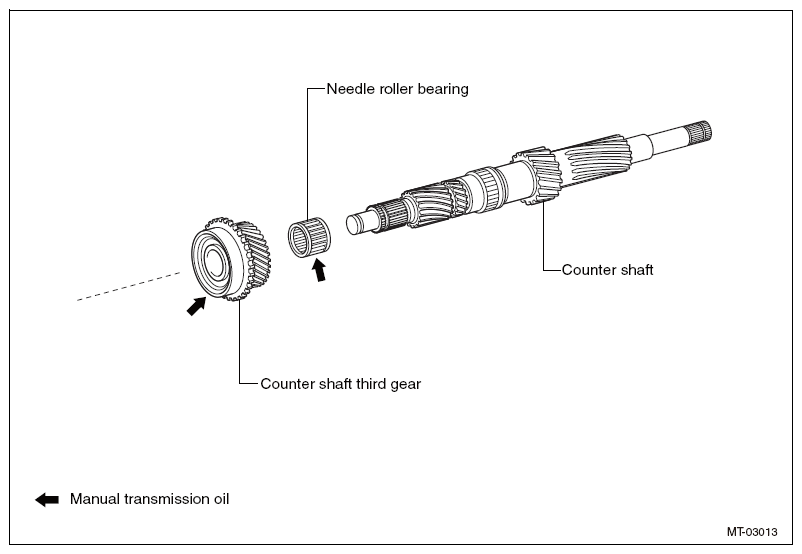

Fig 2: Exploded View Of Counter Gear Assembly
G10215056Courtesy of SUBARU OF AMERICA, INC.
NOTE: Be sure to use the recommended product or the substitute product for manual transmission oil. (Refer to MANUAL TRANSMISSION OIL  )
