Exploded View

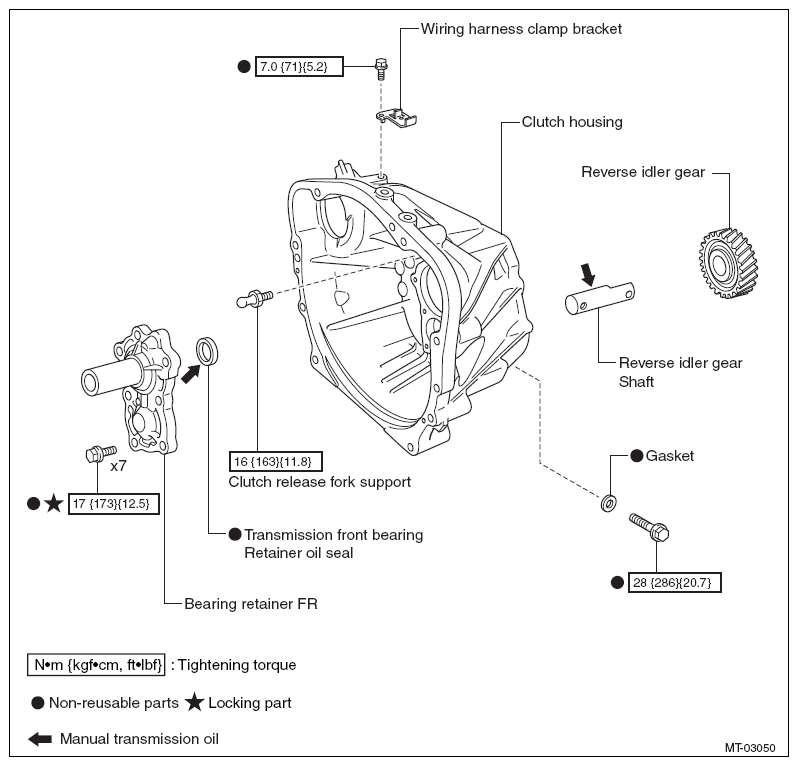

Fig 1: Exploded View Of Transmission Unit Assembly With Torque Specifications (1 Of 5)
G10214842Courtesy of SUBARU OF AMERICA, INC.
NOTE: Be sure to use the recommended product or the substitute product for manual transmission oil. (Refer to MANUAL TRANSMISSION OIL  )

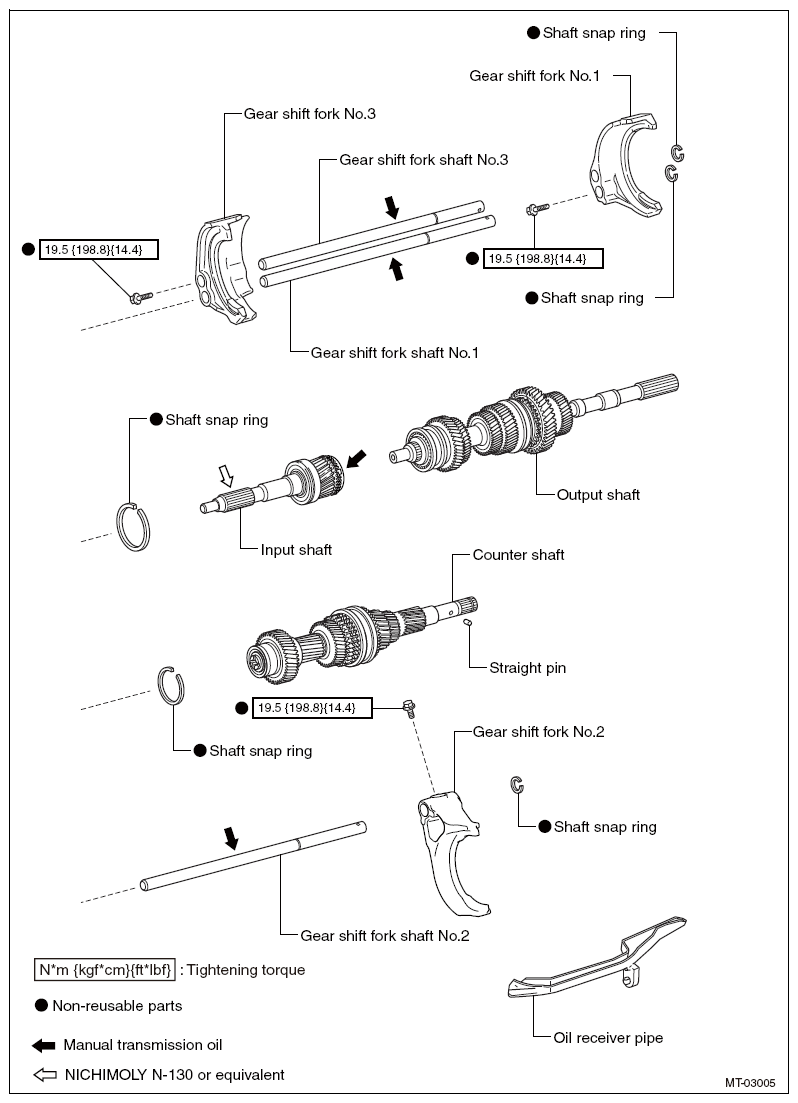

Fig 2: Exploded View Of Transmission Unit Assembly With Torque Specifications (2 Of 5)
G08554902Courtesy of SUBARU OF AMERICA, INC.
NOTE: Be sure to use the recommended product or the substitute product for manual transmission oil. (Refer to MANUAL TRANSMISSION OIL  )

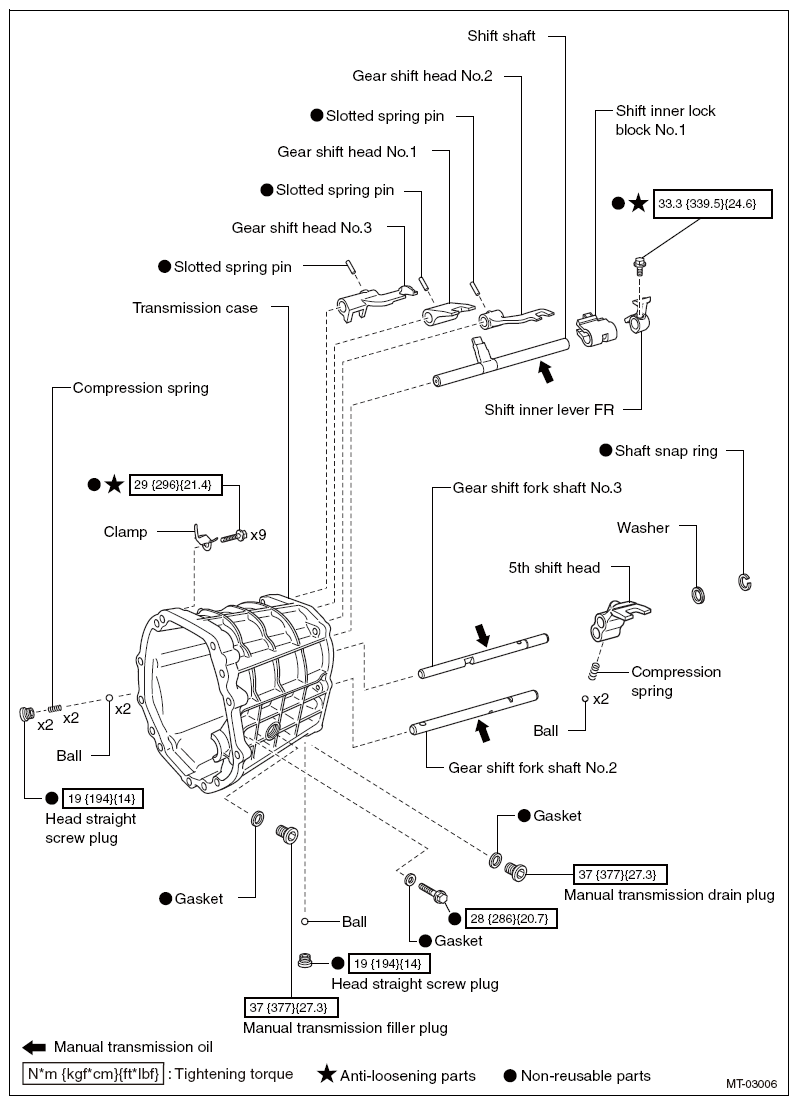

Fig 3: Exploded View Of Transmission Unit Assembly With Torque Specifications (3 Of 5)
G08554903Courtesy of SUBARU OF AMERICA, INC.
NOTE: Be sure to use the recommended product or the substitute product for manual transmission oil. (Refer to MANUAL TRANSMISSION OIL  )

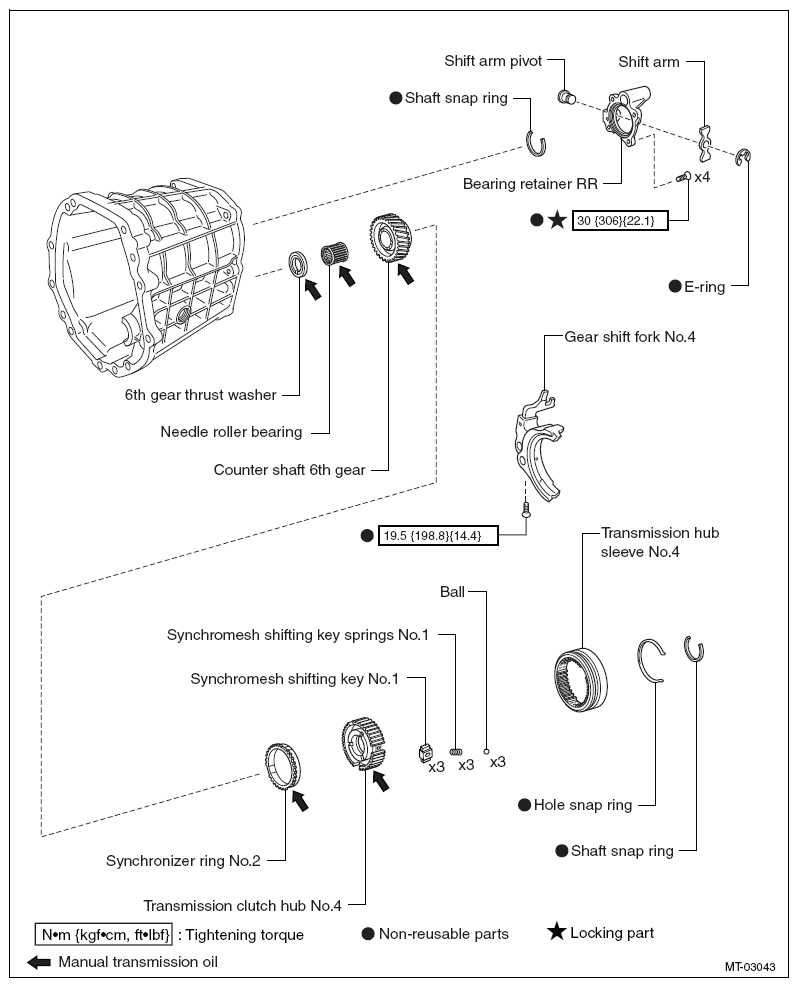

Fig 4: Exploded View Of Transmission Unit Assembly With Torque Specifications (4 Of 5)
G10214845Courtesy of SUBARU OF AMERICA, INC.
NOTE: Be sure to use the recommended product or the substitute product for manual transmission oil. (Refer to MANUAL TRANSMISSION OIL  )

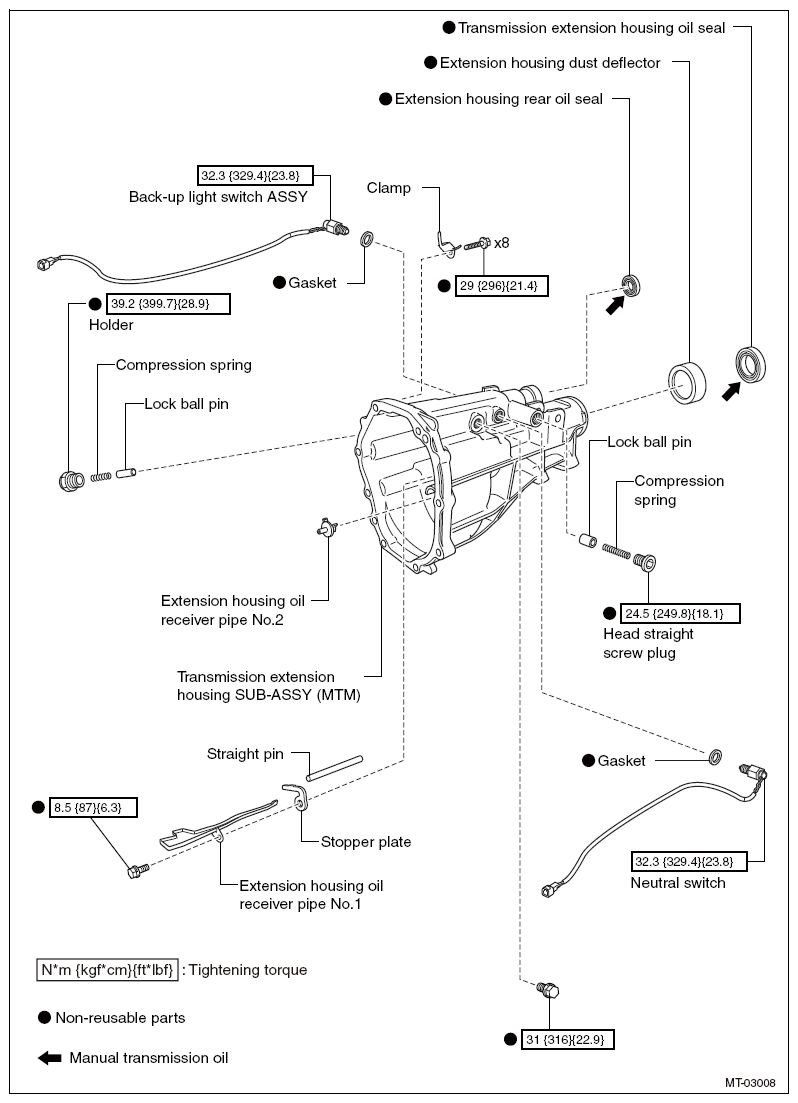

Fig 5: Exploded View Of Transmission Unit Assembly With Torque Specifications (5 Of 5)
G08554905Courtesy of SUBARU OF AMERICA, INC.
NOTE: Be sure to use the recommended product or the substitute product for manual transmission oil. (Refer to MANUAL TRANSMISSION OIL  )
