5 Door Model/CROSSTREK Model

  1. Disconnect the ground cable from battery. < Ref. to BATTERY , NOTE, Note. >
    NOTE: For the 12 volt engine restart battery of HEV model, disconnect the ground terminal from 12V engine restart battery sensor.
  2. Remove the trim panel - rear apron LH. < Ref. to REMOVAL , Rear Quarter Trim. >
  3. Remove the keyless entry control module.
    1. Disconnect the connector.
    2. Remove the bolt and then remove the keyless entry control module.

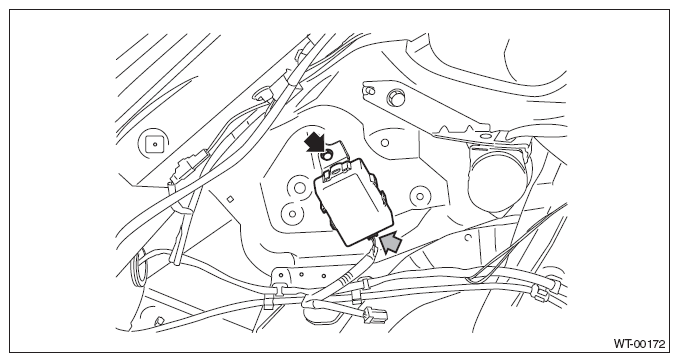

      Fig 1: Locating Keyless Entry Control Module
      G08318391Courtesy of SUBARU OF AMERICA, INC.
