Keyless Entry System

WARNING: This page is about a different car, the 2015 Subaru XV Crosstrek and 2015 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

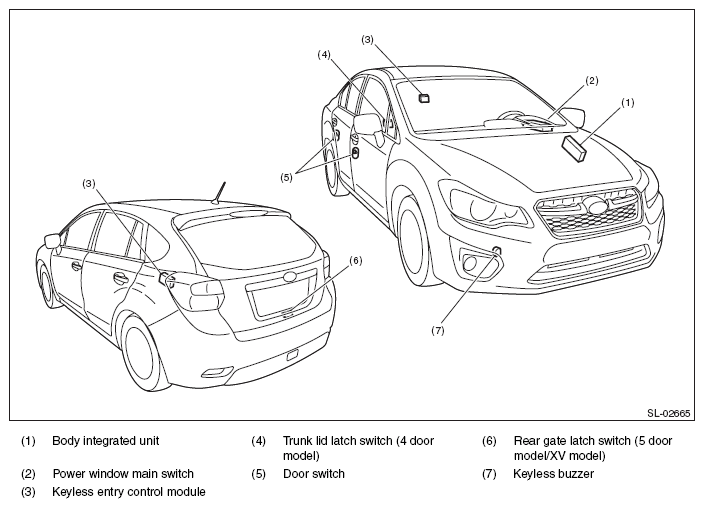

Fig 1: Identifying Keyless Entry System Components
G09489774Courtesy of SUBARU OF AMERICA, INC.
