Power Steering Control Module: Removal

  1. Disconnect the ground cable from battery. < Ref. to BATTERY , NOTE, Note. >
    NOTE: For the 12 volt engine restart battery of HEV model, disconnect the ground terminal from 12V engine restart battery sensor.
  2. Remove the power steering control module.
    1. Disconnect the connector of the power steering control module.
    2. Remove the nuts, and remove the power steering control module.

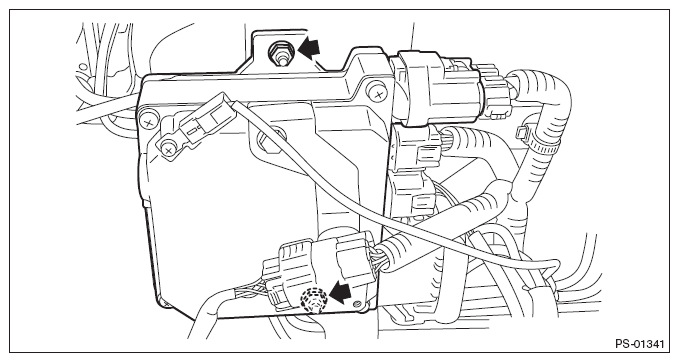

      Fig 1: Locating Power Steering Control Module Nuts
      G08316091
