Remote Control Back Rest Switch

  1. Disconnect the ground cable from battery.
  2. Remove the rear quarter lower trim. Ref. to EXTERIOR/INTERIOR TRIM > Rear Quarter Trim > -- > REMOVAL .
  3. Remove the remote control back rest switch from the rear quarter lower trim.

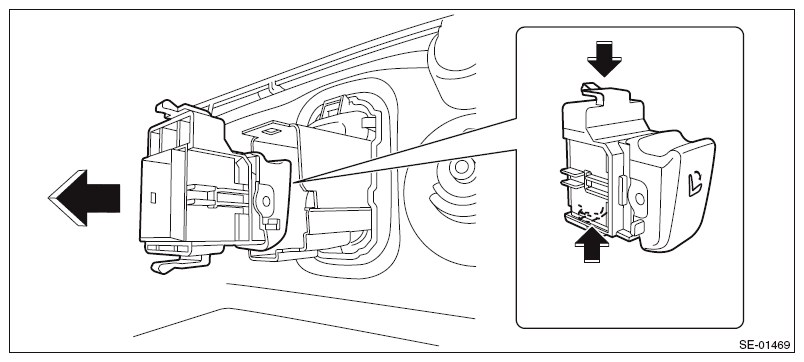

Fig 1: Removing Remote Control Back Rest Switch From Rear Quarter Lower Trim
G09484619Courtesy of SUBARU OF AMERICA, INC.
