Cruise Control Command Switch: Inspection

WARNING: This page is about a different car, the 2016 Subaru Impreza and 2016 Subaru Crosstrek. However, it is still accessible from the selected car via links, so may be relevant.

Measure the resistance between connector terminals.

Preparation tool:

Circuit tester

Impreza model

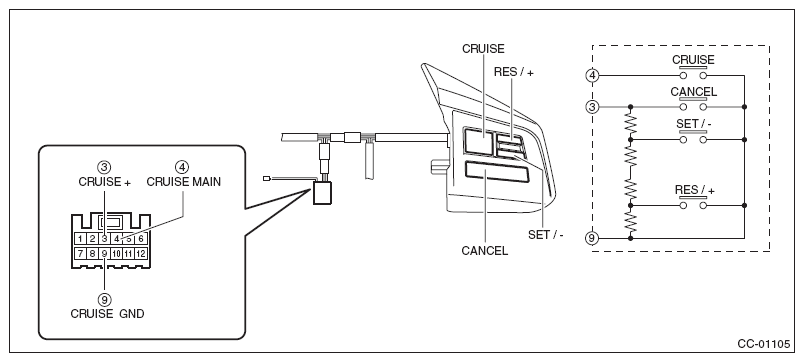

Fig 1: Measuring Resistance Between Cruise Control Command Switch Connector Terminals (Impreza Model)
Courtesy of SUBARU OF AMERICA, INC.
Crosstrek model

Fig 2: Measuring Resistance Between Cruise Control Command Switch Connector Terminals (Crosstrek Model)
Courtesy of SUBARU OF AMERICA, INC.

Terminal No.	Inspection conditions		Standard
3 - 9	CANCEL SET/-- RES/+	All OFF	Approx. 4, 020 Ω
	CANCEL	ON	Less than 1 Ω
	SET/--	ON	Approx. 250 Ω
	RES/+	ON	Approx. 1, 470 Ω
4 - 9	CRUISE (MAIN)	OFF	1 MΩ or more
4 - 9	CRUISE (MAIN)	ON	Less than 1 Ω

Apply battery voltage between the connector terminals to check lighting condition of illumination inside the switch.

Terminal No.	Inspection conditions	Specification
10 (+) - 11 (-)	Apply battery voltage.	Light ON

Replace the cruise control command switch assembly if the inspection result is not within the standard.
