Transmission Control Module (TCM) I/O Signal: Waveform: Solenoid

• Non-turbo model

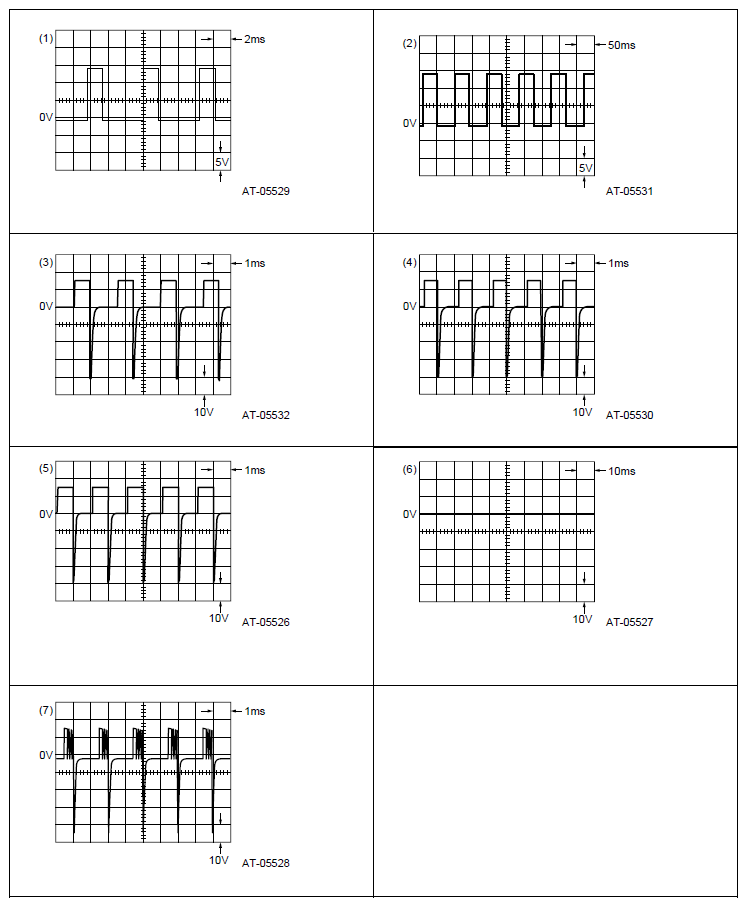

Fig 1: Solenoid Signal Waveform (Non-Turbo Model)

Courtesy of SUBARU OF AMERICA, INC.

• Turbo model

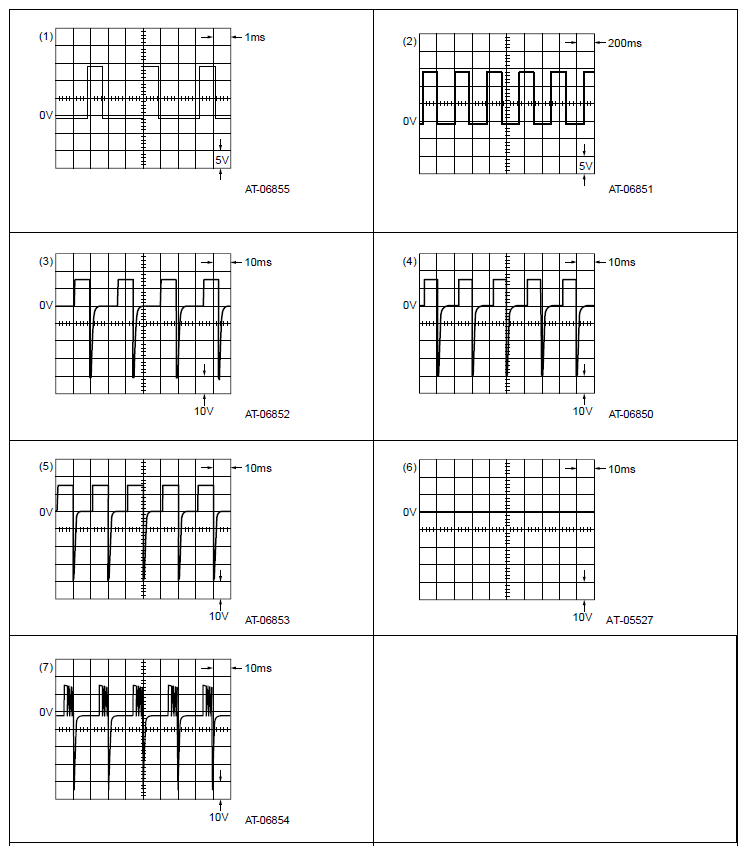

Fig 2: Solenoid Signal Waveform (Turbo Model)

Courtesy of SUBARU OF AMERICA, INC.
