Front Regulator and Motor Assembly: Inspection

Check the motor operation when battery voltage is applied between terminals of the motor - front connector.

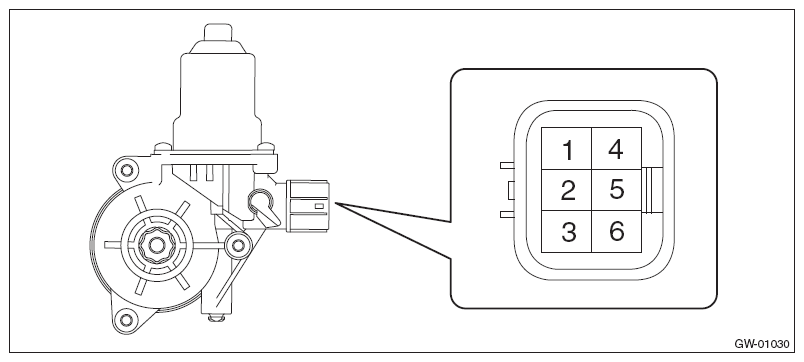

Fig 1: Identifying Front Connector Motor Terminals

Courtesy of SUBARU OF AMERICA, INC.

Terminal No.	Inspection conditions	Standard
4 (+) - 1 (-)	Apply battery voltage between terminals.	Increase
1 (+) - 4 (-)	Apply battery voltage between terminals.	Decrease

Terminal No.	Inspection conditions	Standard
3 (+) - 6 (-)	Apply battery voltage between terminals.	Increase
6 (+) - 3 (-)	Apply battery voltage between terminals.	Decrease

If it does not operate properly as a result of inspection, replace the regulator and motor assembly - front.
